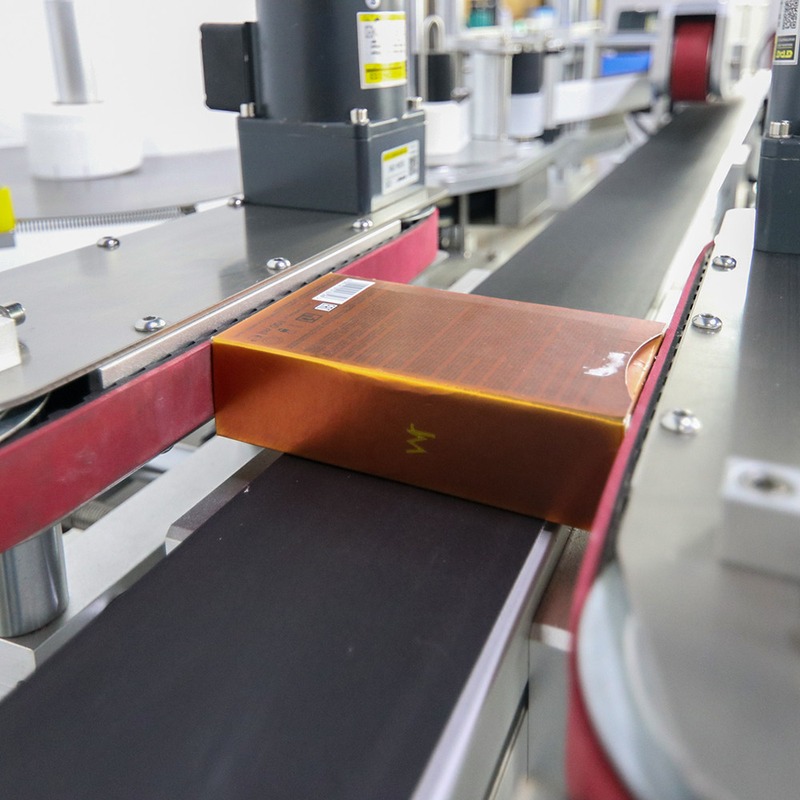

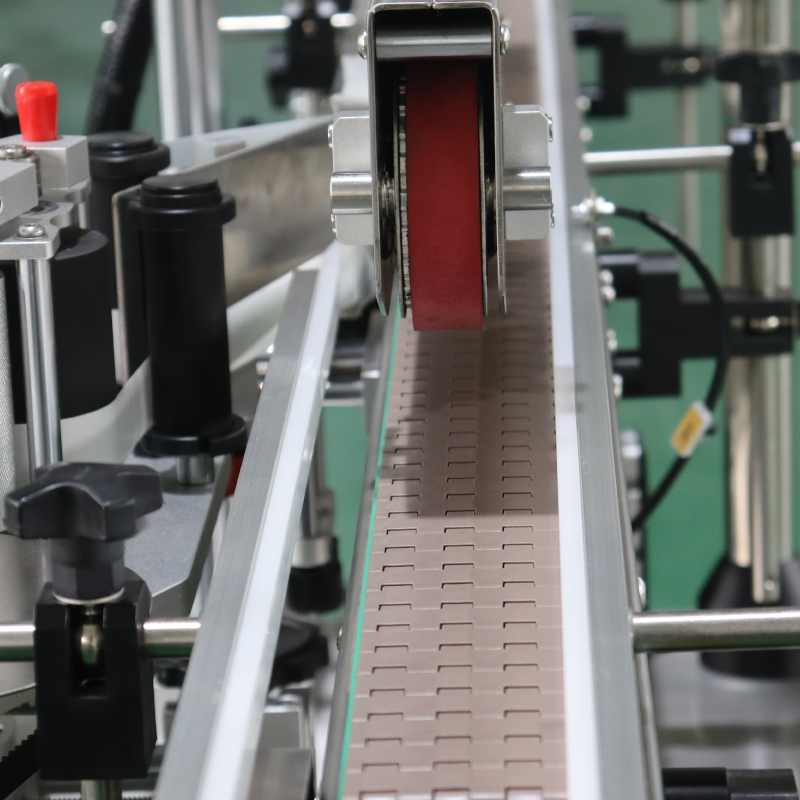

This series of products are suitable for sealing and labeling of various packaging boxes, and are widely used in pharmaceuticals, daily chemicals, logistics and other industries. The flexible box pressing device is adopted to ensure the stability of the box body during labeling, which greatly improves the labeling precision. The upper surface sealing, lower surface sealing, diagonal sealing stickers, etc. of the box can be completed according to customer needs.

Function:

1. It is complied with GMP standard that provides easy maintenance and for a long durable life.

2. The mobility castor and stainless-steel fixing nut are designed to flexibly move the machinery to support another production line to boost the invest benefits.

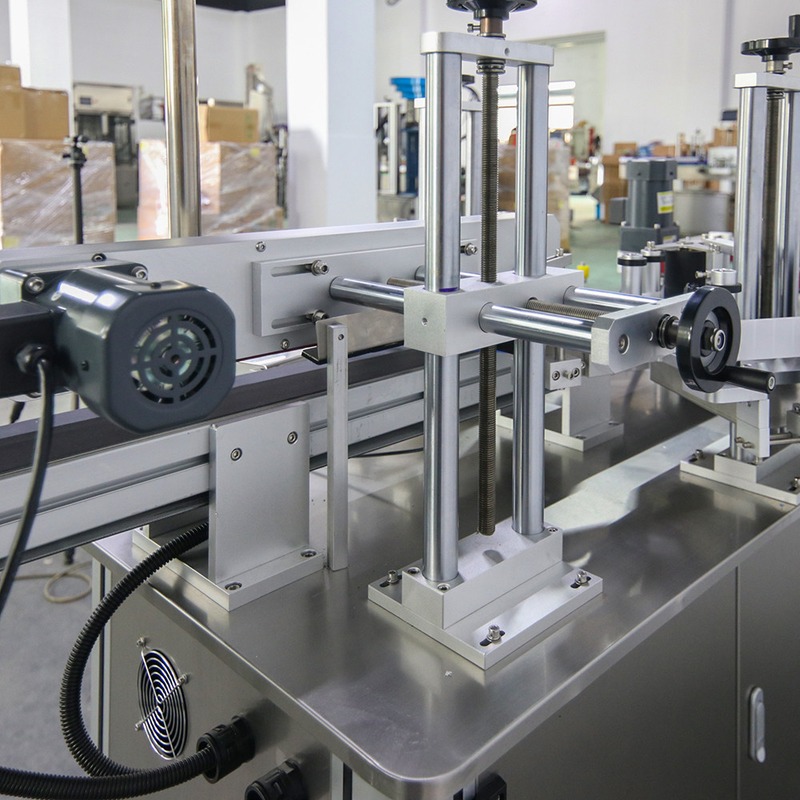

3. It provides a wide range adjustment ability by equipped with hand wheel mechanism for easy adjustment of applicator and depended on products.

4. Smart label length set to quickly achieve for perfect position of label by counter.

5. Missing label set prevents product miss-labeled to ensure product accuracy while production and fulfill production QC procedure.

6. A built-in counter can either run freely keeping track of the number of products labeled to control the production.

7. Production preset function that the labeler automatically stops when the desired numbers of products have been labeled for efficient production management.

8. Auto label start up mode while the power been switch on, the machine will enter labeling condition automatically as previous run without reset.

9. Labeling delay function that it is ideal for small scale adjustment and could do calculate digitally for dispensing speed and position.

Technical parameter:

Model	VK-BCL
Voltage specification	AC220V 50/60HZ
Consumed power	1200W
Labeling speed	40-70 pieces/min (adjustable speed, depending on object size and label length)
Labeling accuracy	+1mm (depending on product characteristics, hardness and roundness)
Conveyor speed	50-80 boxes per minute
Scope of object	Length 20-300mm width 50-200mm height 25-300mm
label specification	Width 20mm ~ ~ 130mm length 15 ~ ~ 100mm (special specifications can be customized)
Paper roll diameter	Φ paper roll diameter: 76 mm Φ 320 (maximum)
Heavy volume	200KG
Packing size	1800X900X1300mm

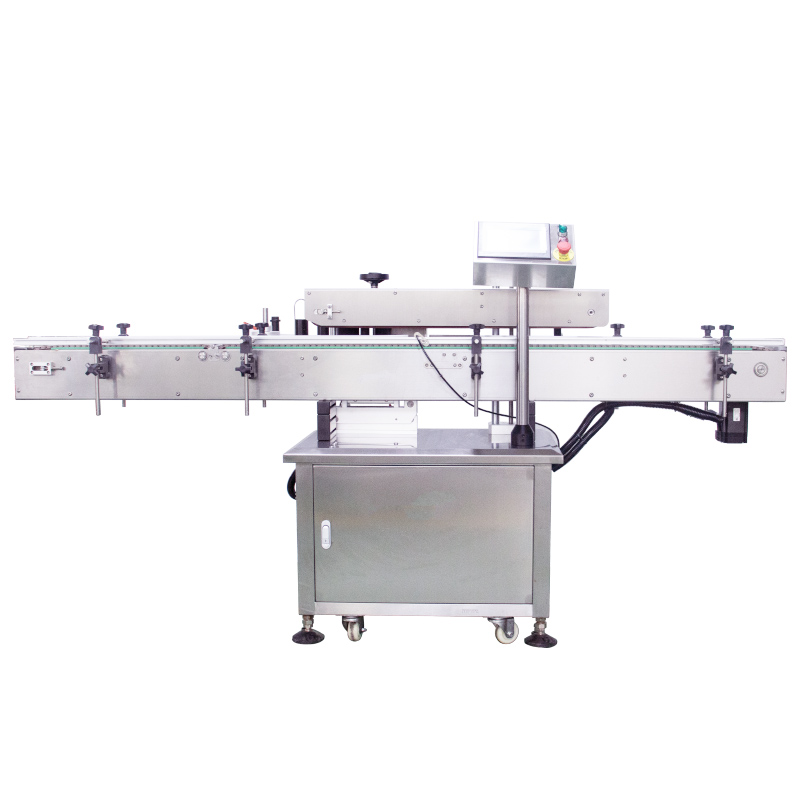

Box Corner Wrap labeler is suitable for corner labeling for various carton box products. Adapt inline continuous labeling without product pause. Which is most suitable tamper-evident & corner labeling product within the market.

Well-designed structure efficiently adjusts applicator position and related assembly, complicated part changeover is not required.

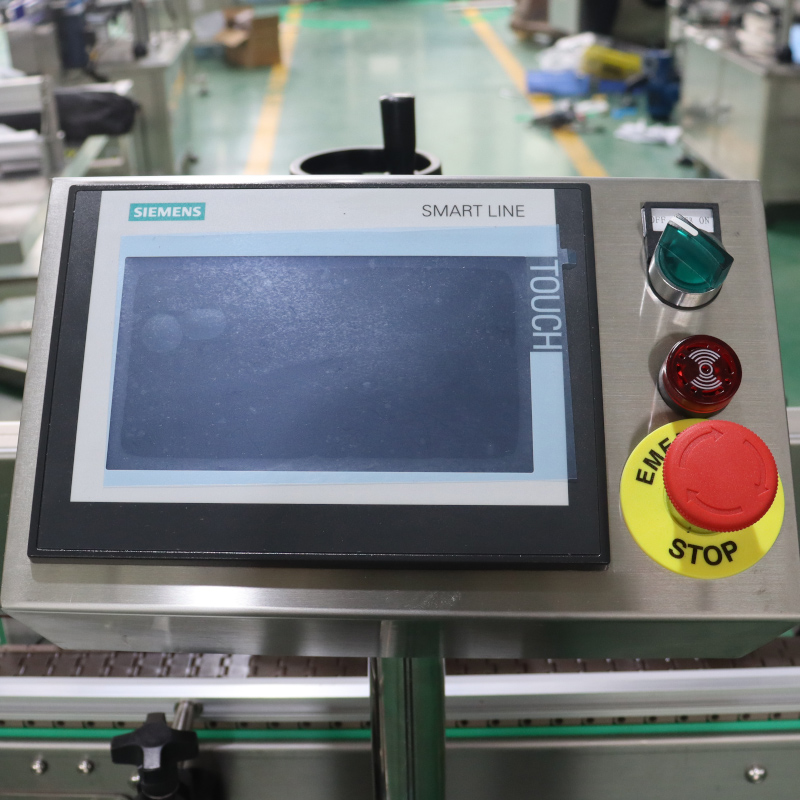

Through touch screen will able to proceed detail and specific settings.

The corner wrap labeler is equipped with production quantity set and pre-count function for production monitoring purpose.

The seal labeling machine can able to customize equip various detection and warning function for the production management. To ensure labeling accuracy precision and meet strict quality demand.

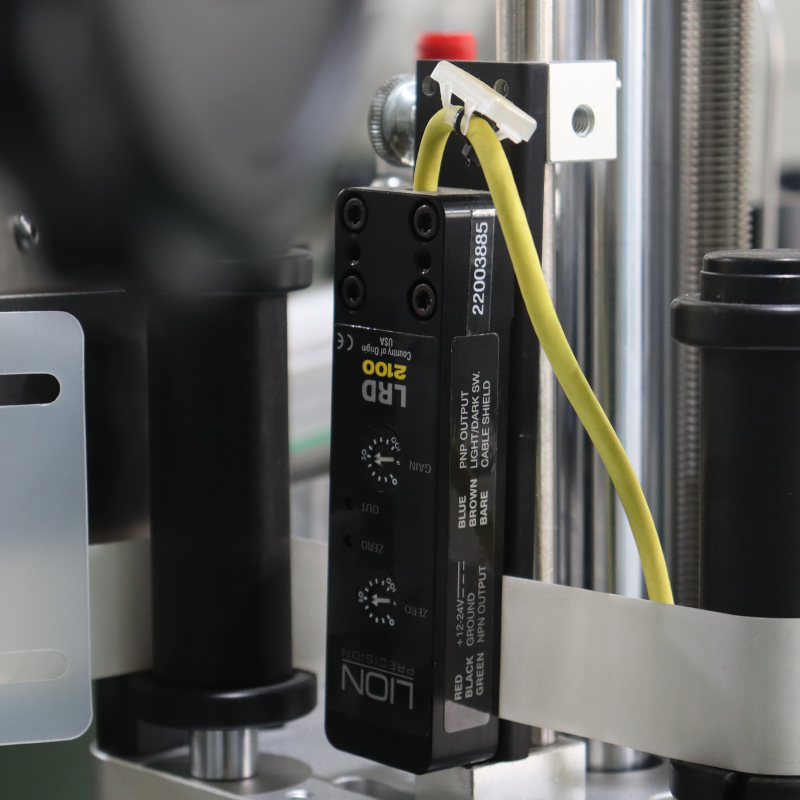

The main engine is driven by Japanese Panasonic servo motor, Mitsubishi (Japan) PLC control system, Mitsubishi (Japan) touch-type human-machine interface, fiber optic amplifier (Japan Keyence) devices and other imported components, bringing together many leading technologies to make it Become one of the products with technical advantages in the industry.

Microcomputer automatic control, friendly touch screen man-machine interface, and exquisite mechanical structure make the operation simple and powerful; it can realize label quantity setting, label counting, printing control, labeling control, label breaking, label missing, colorless Automatic detection and alarm of belt and other abnormal conditions; random production capacity display and label quantity management; label tightness adjustment; label length and gap calculation; host height and front and rear position adjustment; labeling and label detection photocell sensitivity adjustment.

The whole machine is made of high-quality T6 aluminum alloy and SUS304 stainless steel, with excellent workmanship and in line with GMP regulations. VK-BCL carton sealing and labeling machine is a very cost-effective product.

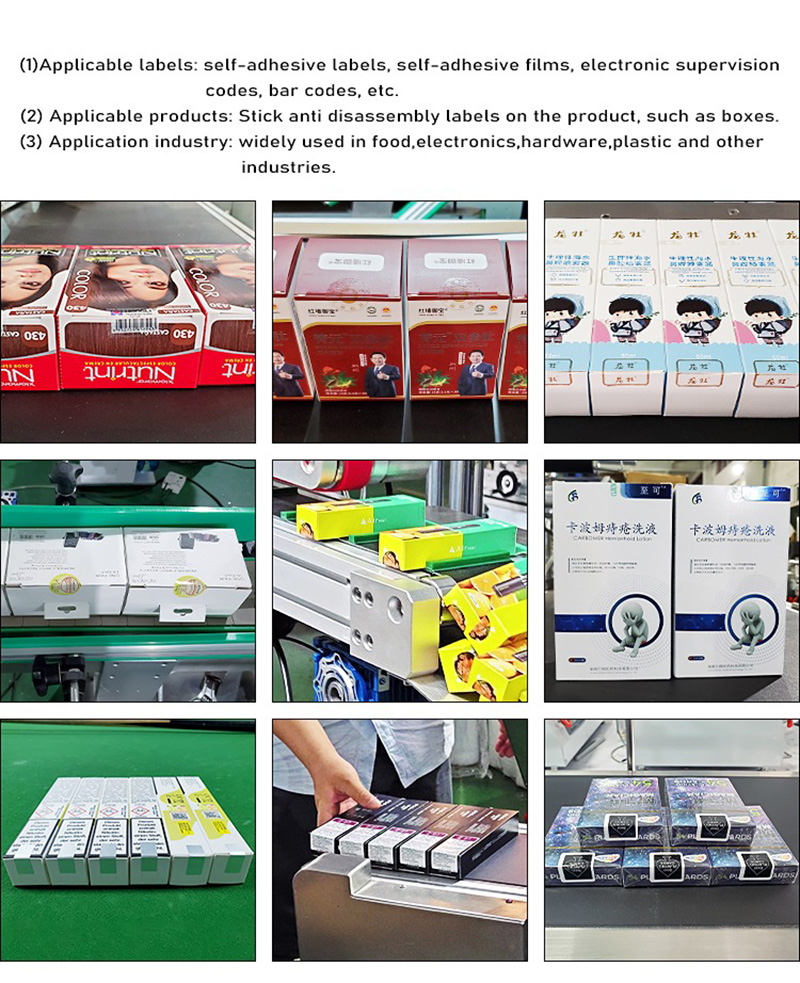

Application:

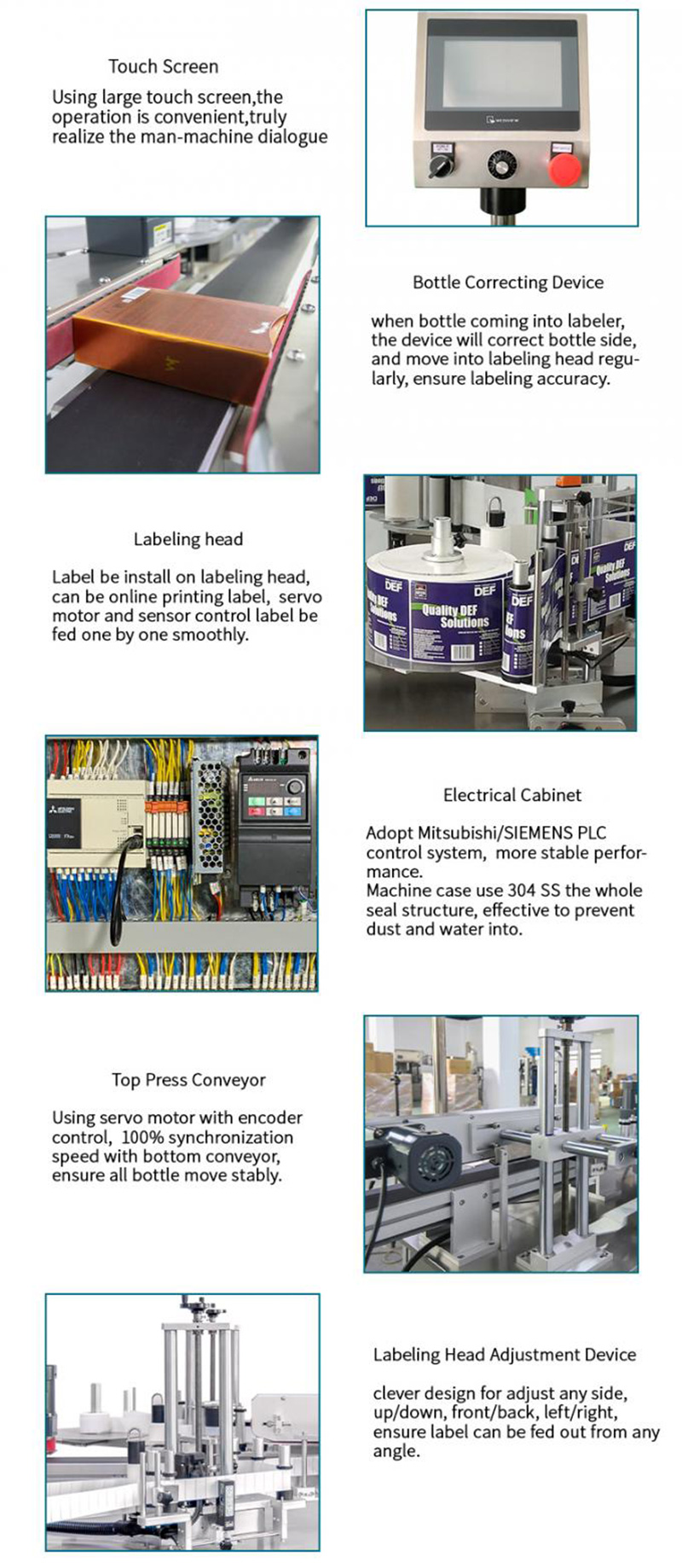

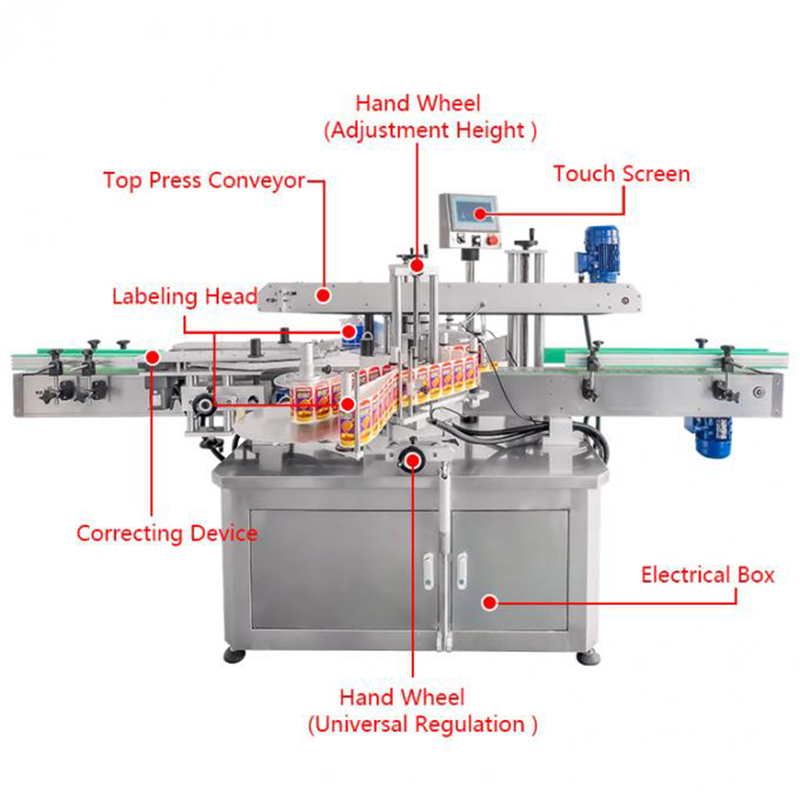

Details:
