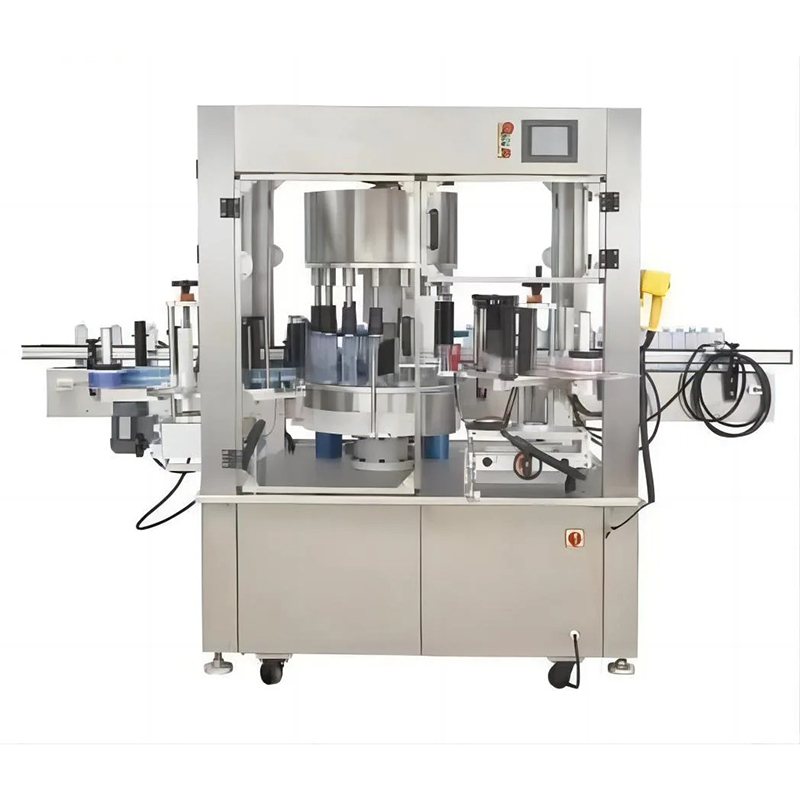

VK-HMGL-R Rotary Hot Melt Glue Labeler Machine

VK-HMGL-R rotary hot melt glue labeling machine is the newest continuous operation of the labeling machine.

This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating.

This equipment adopts the current labeling machine type, the most advanced, the most precise method for the volume label of OPP and other plastic material as base material, through the automatic correction instrument and various kinds of high precision photoelectric sensing elements to control the label location precision, adopt scientific institutions to complete automatic cutting and automatic send logo, and will be in the form of roller coating label solid, reliable and accurate paste on the packing materials.

Output Speed: 100-400 pieces/minute depends on label and bottle size

Dimension: 5000L*1600W*2000H(mm)

Hot melt labeling machine, or opp labeling machine is suitable for labeling opp material labels, on different volume and shape of bottles. No matter the bottle is round,square, or special shape, our machine is able to label it. It is easy to operate and convenient to change the mould. It's cable to work with PET blwoing machine, filling machine, code printung machine, water treatment ,ect. In addition,the label cost is comparatiely lower, it can meet the requirements of those users who have diverse kinds of the containers.

Function:

1. Auto cutting and Sticking circle or half circle of bottle. Auto melting and attaching glue on top and rear of the label , glue auto recycling .

2. Variable speed control system, synchronous automatic detection system, automatic adjust production speed, Always make the labeling machine at best production speed

3. Star Wheel separation and feeding ,correlation design transmission mode high-speed labeling, stable precision.

4. Servo motor synchronous tracking, with special designed vacuum drum adsorption, labeling precise and stable

5. Abnormal situation, this machine has safety device, automatic stop immediately.

6. The whole machine centralized lubrication system, easy to clean, lubrication and maintenance.

Technical Parameter:

Model	VK-HMGL-R100	VK-HMGL-R200	VK-HMGL-R300	VK-HMGL-R400
Speed of labeling	12000BPH-16000BPH	18000BPH-24000BPH	25000BPH-30000BPH	32000BPH-36000BPH
Power	AC 3ψ380V50Hz
Efficiency	≥99.5	≥99.5	≥99.5	≥99.5
Accuracy of labeling	±1mm	±1mm	±1mm	±1mm
Diameter of bottle	40-110mm	40-100mm	40-100mm	40-100mm
Material of bottle	Glass, Metal, Plastic	Glass, Metal, Plastic	Glass, Metal, Plastic	Glass, Metal, Plastic
Shape	Round	Round	Round	Round
Label material	OPP,BOPP,PAPER	OPP,BOPP,PAPER	OPP,BOPP,PAPER	OPP,BOPP,PAPER
Label thickness	0.035-0.05mm	0.035-0.05mm	0.035-0.05mm	0.035-0.05mm
Label height	40mm-180mm	40mm-150mm	40mm-180mm	40mm-150mm
Inside diameter of paper tube	6inch	6inch	6inch	6inch
Air source	0.5Mpa	0.5Mpa	0.5Mpa	0.5Mpa
Rated power	10KW	10KW	12kw	12kw
Machine size	3176L1500W2050H(mm)		5000L1600W2000H(mm)
Weight	2000kg	2500kg	3200kg	3500kg

Features:

Applicable to labeling all kinds of containers with wrap-round labels like OPP film, pearl film, composite film and widely applied to the industries of detergents, beverages, mineral or purified water, foods etc.
Fully automatic high speed labeling process, replacing the manual labeling and enhancing the productivity and helping users to strengthen the competitiveness of their products.
Adopting environment-friendly materials is the packing industry trend, the labeling machine is specially used for this kind of materials like OPP film labels, so it can help to save 30% or above packing cost.
Combined with advanced gluing technology and features of hot melt glue, the labeling machine only sprays glue at both ends of label and attach the label perfectly, this technology can minimize the consumption of glue and save production cost.
As the applied label is non-shrinkable material, the printed patterns on the label won’t be deformed, staying the packing decoration.
The labeling machine is applied for non-shrinkable labels, so no shrinking facility is required, saving a lot of energy.

Safety part of the machine

Safety protection	In order to keep the operator safety ,when the machine is running please close the protective doors
Lack of label alarm	Set an alarm to remind the operator to change the label when the label will be use out
Lack of bottle alarm	When lack of the bottle the machine will stop and make an alarm .The machine will restart automatically as soon as the bottles have been put that will facilitate on-line production
Leak of labeling alarm	To control the quality of labeling
Pressure testing	When the pressure can not meet the equipment requirement ,the machine will stop to against bad products produce
Vacuum testing	When the vacuum can not meet the equipment requirement ,the machine will stop to against bad products produce
Temperature testing	When the temperature can not meet the equipment requirement , the machine will stop to against bad products produce

Method of Operation:

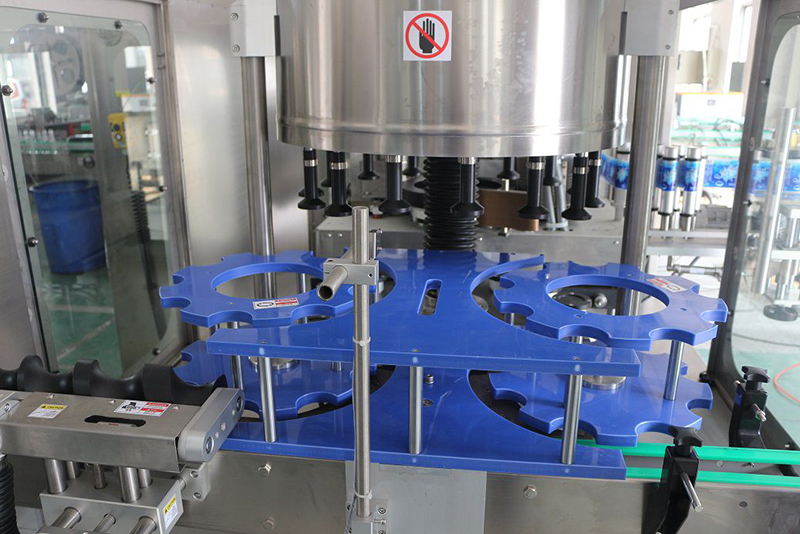

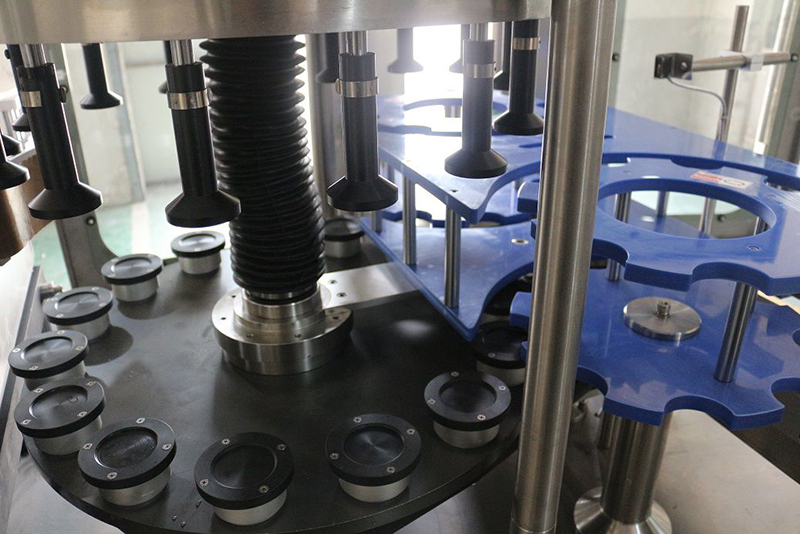

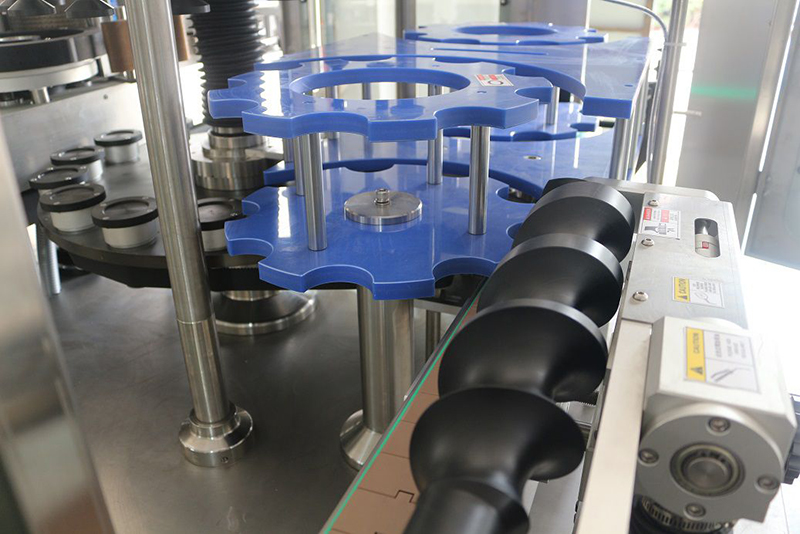

The containers are picked up by the infeed starwheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.

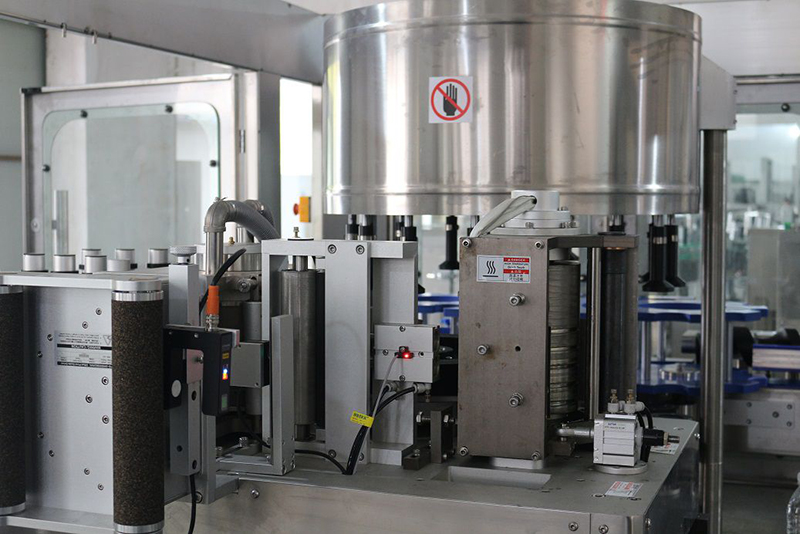

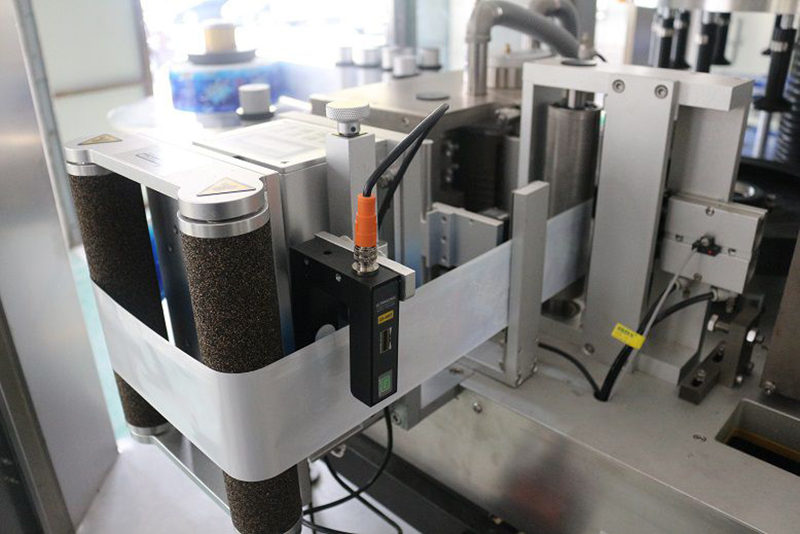

The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point.

Two narrow strips of hotmelt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly. Gluing of the trailing edge ensures proper bonding.
