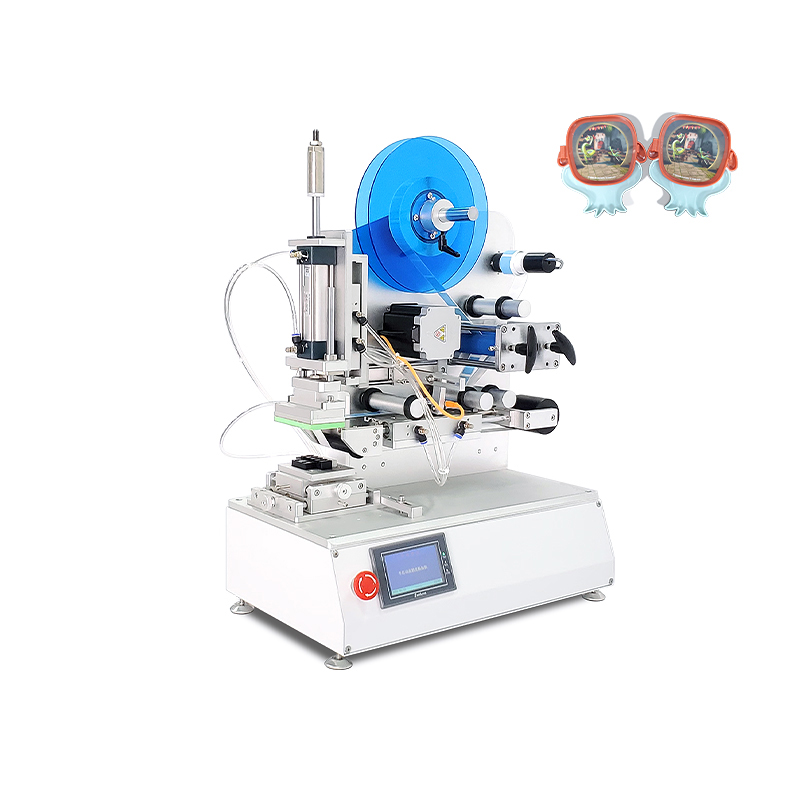

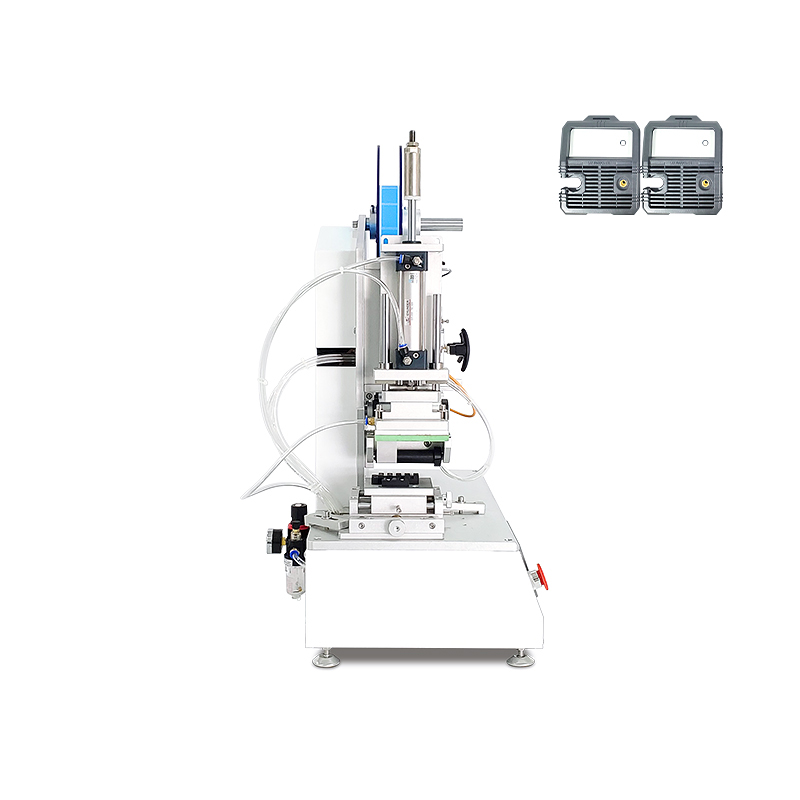

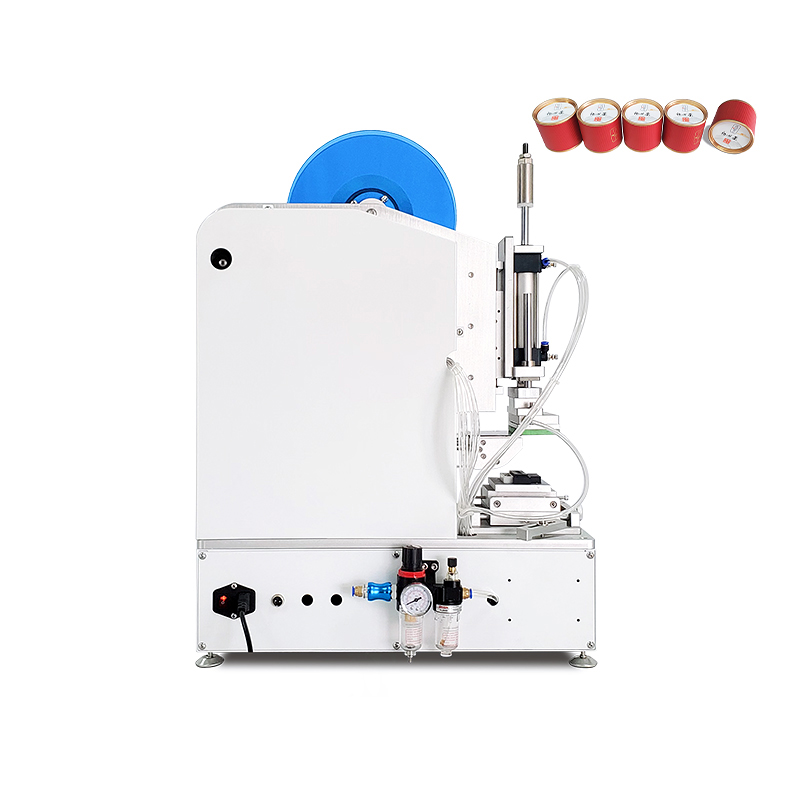

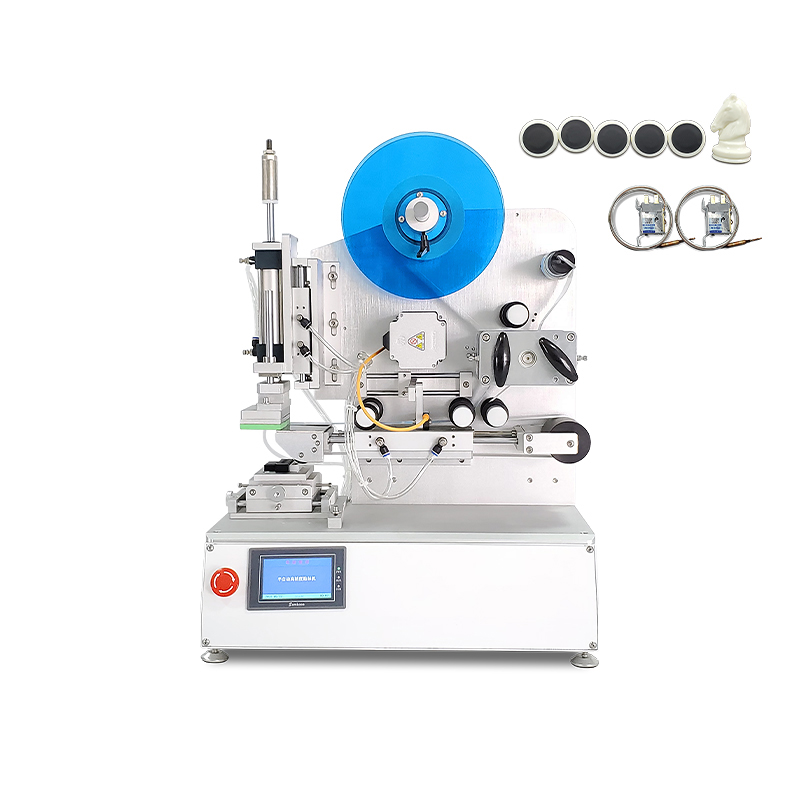

VK-T804 High Precision Semi-Automatic Flat Labeling Machine

The high precision semi-automatic labeler applies a label to a flat, arc, or concave surface of electronic components and digital products, including SD cards, cell phone batteries, FPC, phone chargers and more.

Applicable Labels: Self-adhesive Label, Transparent Label, Electronic Supervision Code, Bar Code, etc.

Output Speed: 15-20 pieces/minute depends on label and bottle size

Dimension: 575mm*427mm*815mm

View Video
It is suitable for labeling on the upper plane, arc surface and concave surface of products. The labeling accuracy is as high as (+0.2mm). It is mainly used for precise labeling of electronic components and digital products, such as SD card, mobile phone battery, FPC (flexible circuit board), mobile phone charger, etc. High precision labeling, highlight the excellent quality of products, improve competitiveness.

Function:

1. Multi-purpose: One machine can realize single and double-sided labeling of various products(flat surface, chip, battery and other high-quality products), select color belt coding machine and inkjet printer. Print production batch number and other information at the same time to reduce packaging process and improve work efficiency.

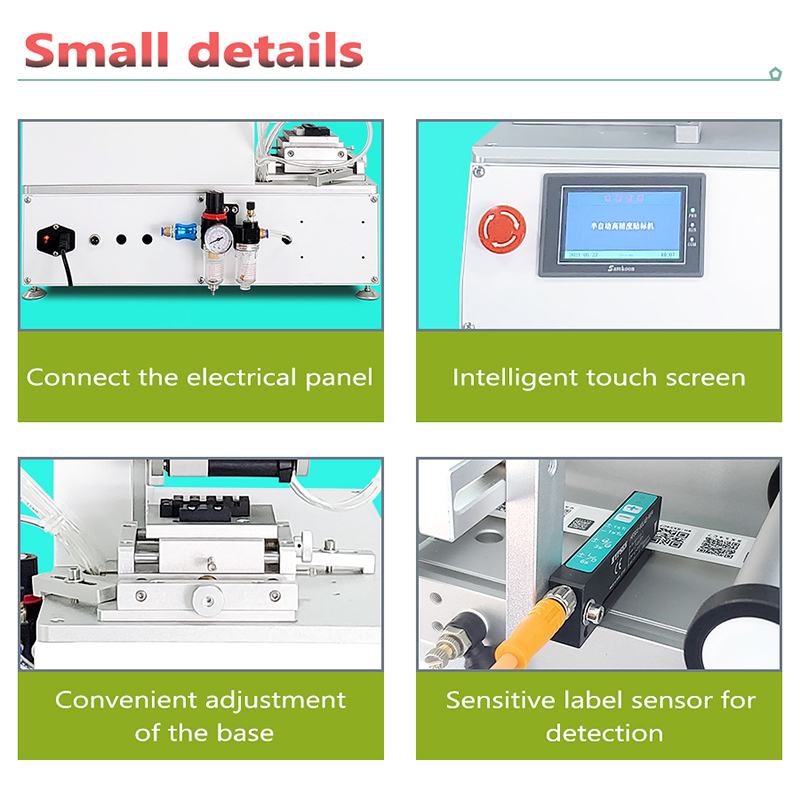

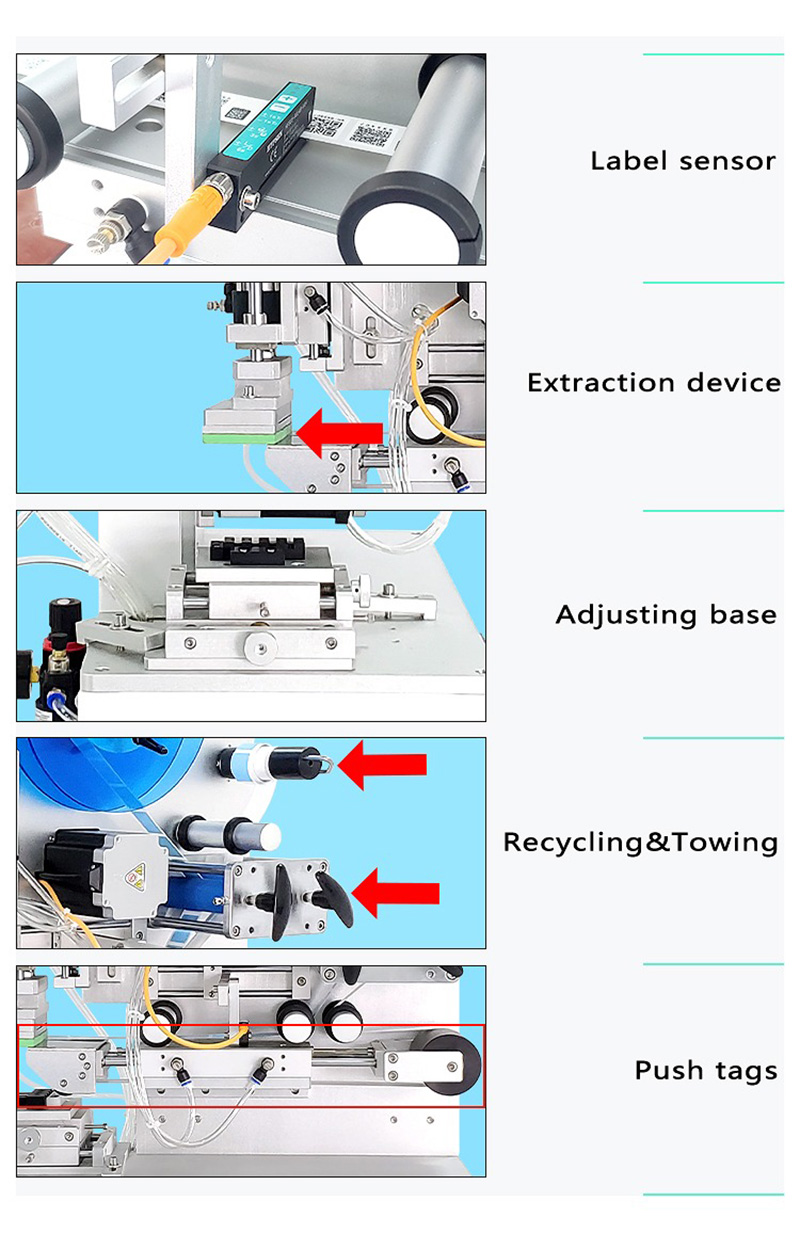

2. Electronic Eye Measuring Label: It adopts imported German Leuze electric eye to measure the label, accurate, stable and reliable.

3. High Precision: Motor control and PLC program control are adopted to ensure more stable labeling and more accurate labeling. Accurate and fast label covering with air cylinder, ensures no wrinkle, blister and other problems in labeling. It can simulate manual operation and is more intelligent.

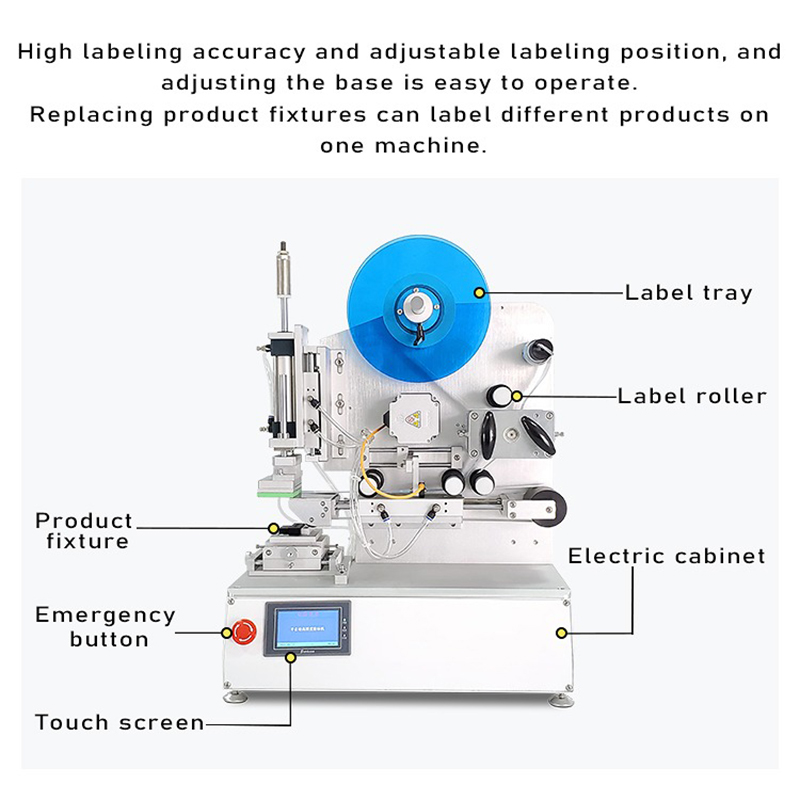

4. Easy to Operate: Equipped with adjustable high precision base, it is convenient for different height products to be labeled without repeated replacement of fixture. Touch screen operation is adopted to realize one key calling function of parameter setting, which is convenient for customers to change money, reduces the use difficulty of operators to the greatest extent, simplifies the operation.

5. One Year Warranty: This labeling machine will be checked and packaged in good condition before shipping. We provide 1 YEAR warranty for every our customer.

6. Multi-purpose: One machine can realize single and double-sided labeling of various products(flat surface, chip, battery and other high-quality products), select color belt coding machine and inkjet printer. Print production batch number and other information at the same time to reduce packaging process and improve work efficiency.

Technical parameter:

ModelVK-T804
Labeling Accuracy±0.2mm
Labeling Speed15-20 pieces/min
Applicable for product diameterLength: 10mm-300mm, width:20mm-300mm, Thickness: 5mm-85mm
Applicable Label SizeLength:10mm-50mm, Bottom paper width: 25mm~100mm
Device Dimensions575mm*427mm*815mm
Applicable Power Supply220V/50HZ
Weight45KG
Applicable Label Roll lnner Diameter76mm
Applicable label Roll lnner Diameter280mm

Application:

VK-T804 High Precision Semi-Automatic Flat Labeling Machine
Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes

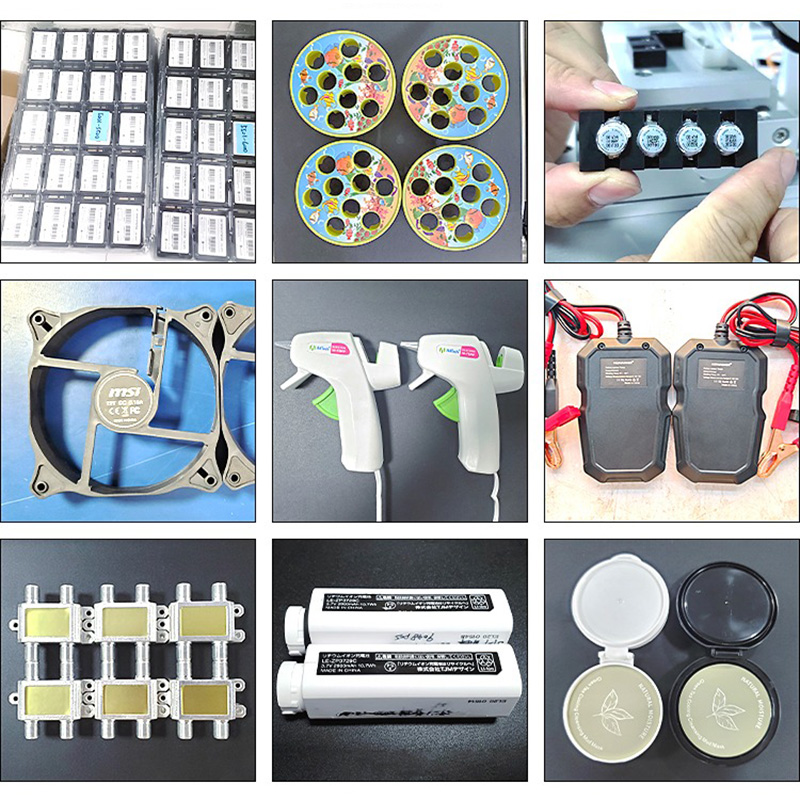

Applicable products: products requiring a label on a flat, cambered, round, concave or convex surface.

Applicable industries: food, toy, daily chemicals, electronics, pharmaceutical, hardware, plastic, printing

Notice:

1. Optional matching ribbon printer and jet printer, labeling at the same time print production batch number, production date, expiration date and other information, labeling, one-step completion of coding, greatly improving production efficiency.

2. It need to custom the fixture to apply to the labeling of various irregular work pieces.(please send you thing or measure your thing size )

3. We can custom the machine to apply your label and bottle . please contact with us
