VK-FPL-V Flat Paging Labeling Machine With Vacuum Conveyor

This bag dispenser labeler machine is suitable for single side labeling stickers on flat surface like plastic bags, opp bags, paper, mask bag, books, file pocket etc. It can label 20-120 pieces/min which can help you improve working efficiency greatly.

Widely used in food, daily chemical, electronic, metal, plastics and other industries. It has optional date coding device, realize date coding on stickers.

Output Speed: 60-200 pieces/minute depends on label and bottle size

Dimension: 2500×900×1700mm

View Video

Function:

1. Used different sizes bag, pouch, tag, carton, paper paging, labeling, printing and collecting.

2. The vacuum conveyor belt bring material (bag,pouch, carton) automatically avoiding material moving. It can separate pages stably and accurately;

3. The whole machine adopts mature PLC and HMI control system to ensure the stable running in high speed;

4. Operation is simple, practical and efficient with the use of touch screen for operation system;

5. Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;

6. Automatic photoelectric detection functions including cancelling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.

Application:

VK-FPL-V Application

Technical parameter:

ModelVK-FPL-V
Label width5-310mm
Label length5-500mm
Labeling speed0-200pcs/min
Labeling accuracy±1mm
Power supply600W, 220V, 50Hz/60Hz
Label reel inner diameter76mm
Label reel outer diameter360mm
Machine weight350kg
Machine size(L×W×H)2500×900×1700mm
Control systemJapanese Mitsubishi PLC

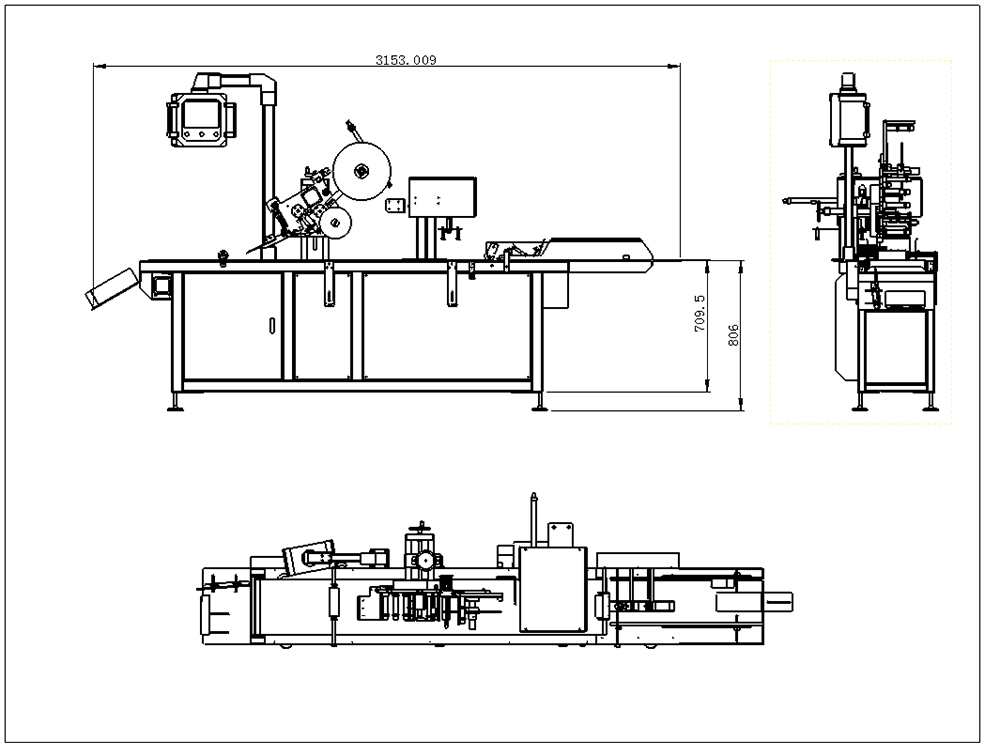

VK-FPL-V Drawing
1. Automatic feeding system: This system can automatically adjust the feeding method based on the thickness of the product. For thinner products, a gentle feeding approach can be used to prevent damage or deformation. For thicker products, a more robust feeding mechanism can be employed to ensure smooth passage through the labeling machine.

2. Adjustable pagination device: The pagination device should have adjustable parameters to adapt to different product thicknesses. This ensures that the pagination device can provide the appropriate force and precise pagination position when handling products of varying thicknesses.

3. Sensors and control system: The pagination labeling machine should be equipped with sensors and an intelligent control system to detect and monitor the thickness of the products in real-time. Based on the detection results, the machine can automatically adjust the feeding and pagination device parameters. This ensures that each product is accurately fed and paginated, regardless of its varying thickness.

4. Multi-functional labeling head: The machine should have a multi-functional labeling head that can accommodate different surface characteristics and labeling requirements of the products. For example, for very thin products, a soft labeling head can be selected to avoid damage or indentation.

5. Precise positioning system: The machine should have a precise positioning system to ensure the accurate placement of products during the pagination labeling process. This helps prevent offsetting or inaccurate labeling, regardless of variations in product thickness.

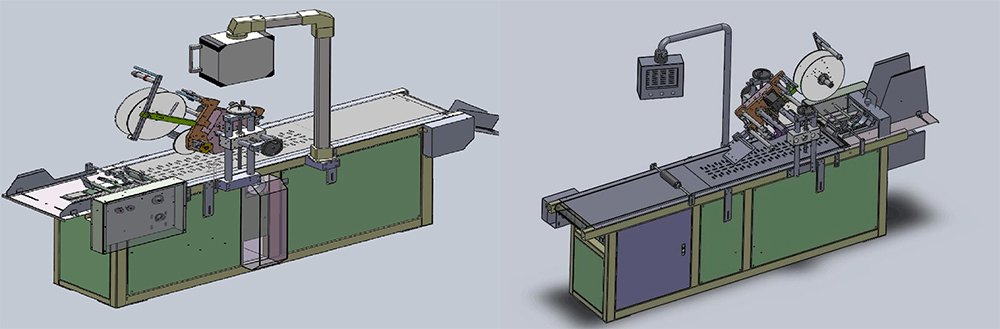

VK-FPL-V Drawing

Main Parts

NameBrand
PLCSIEMENS / MITSUBISHI
HMISIEMENS / WEINVIEW
MotorRAYNEN servo motor  / KINCO stepper motor
SensorSICK / KEYENCE / PANASONIC
Touches screenWEINVIEW (Taiwan)
Frequency changerSchneider(Germany)
Stainless steel material304SS
