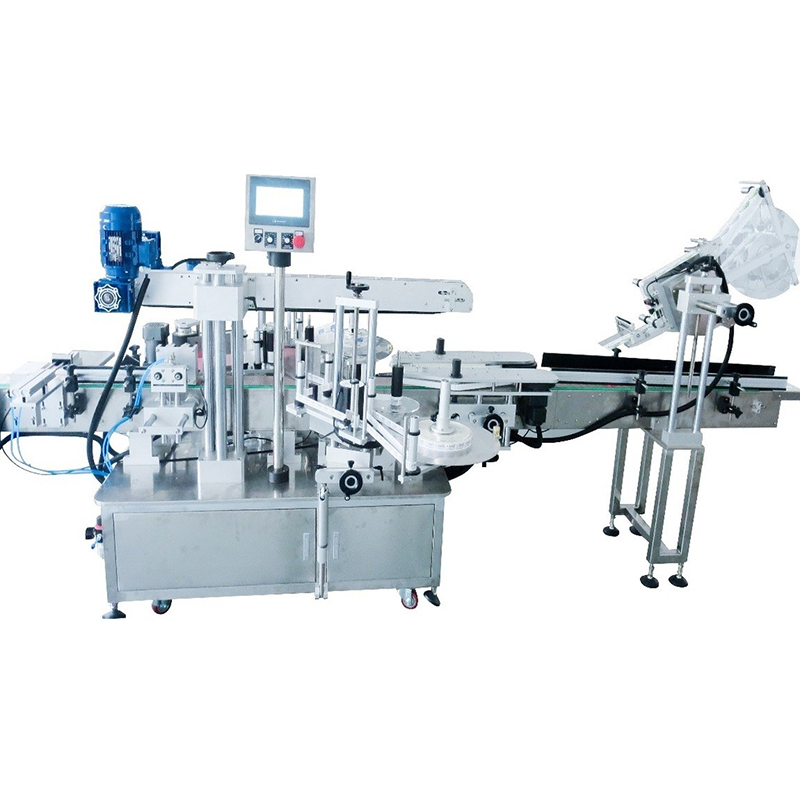

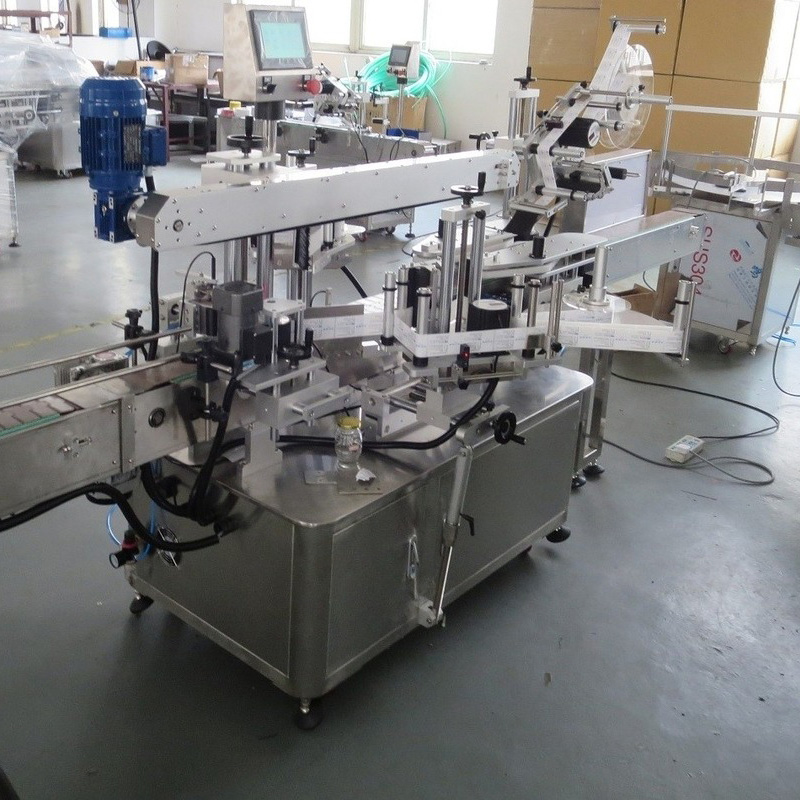

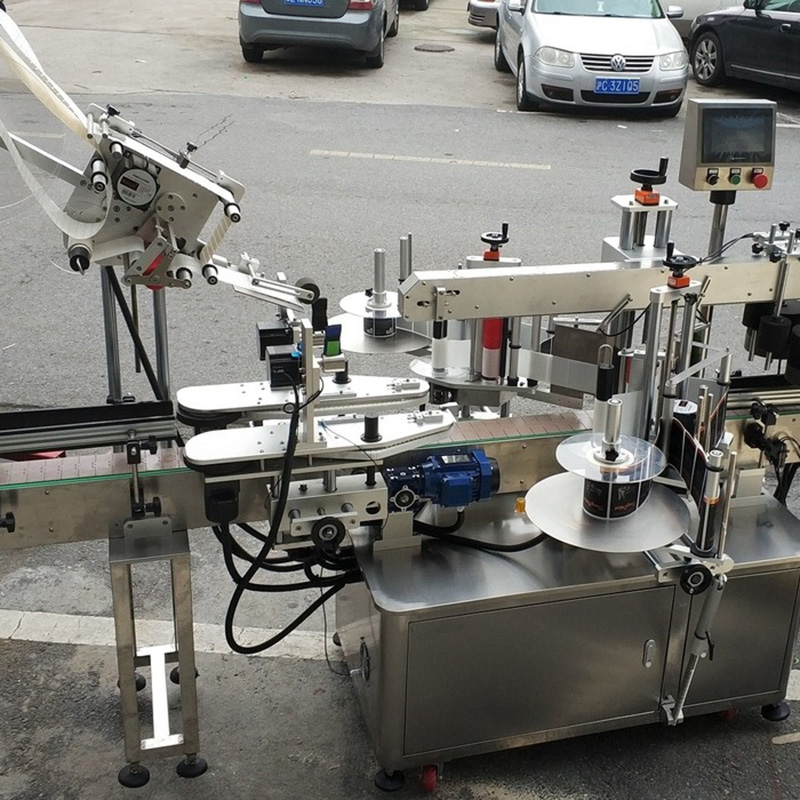

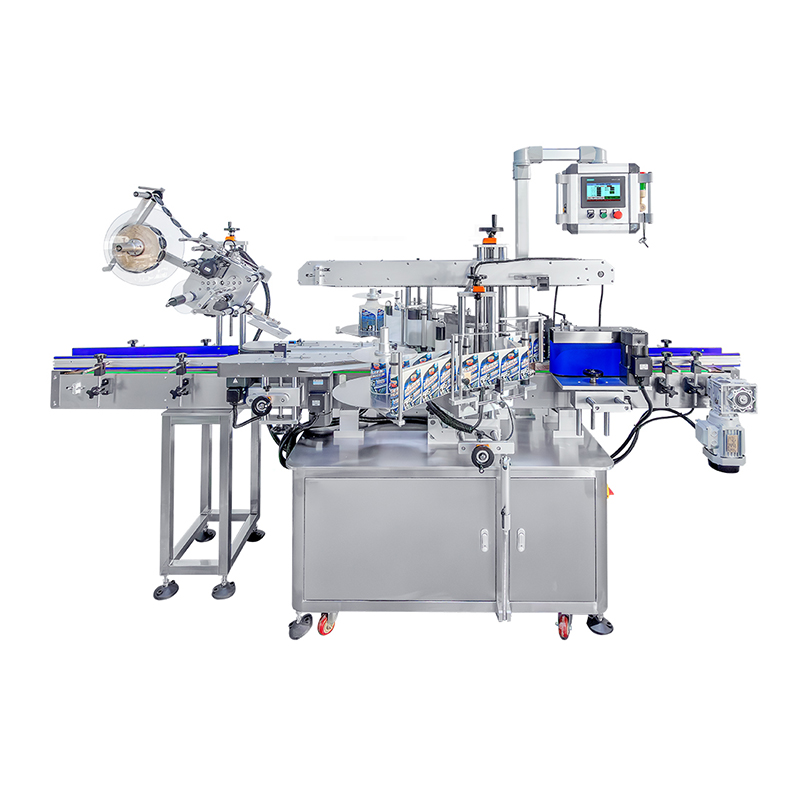

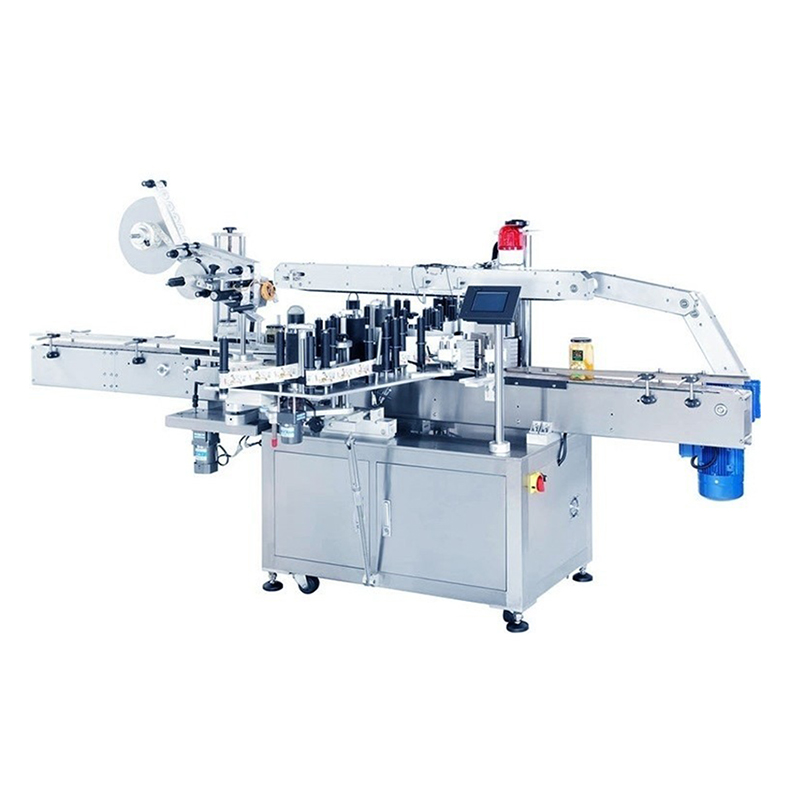

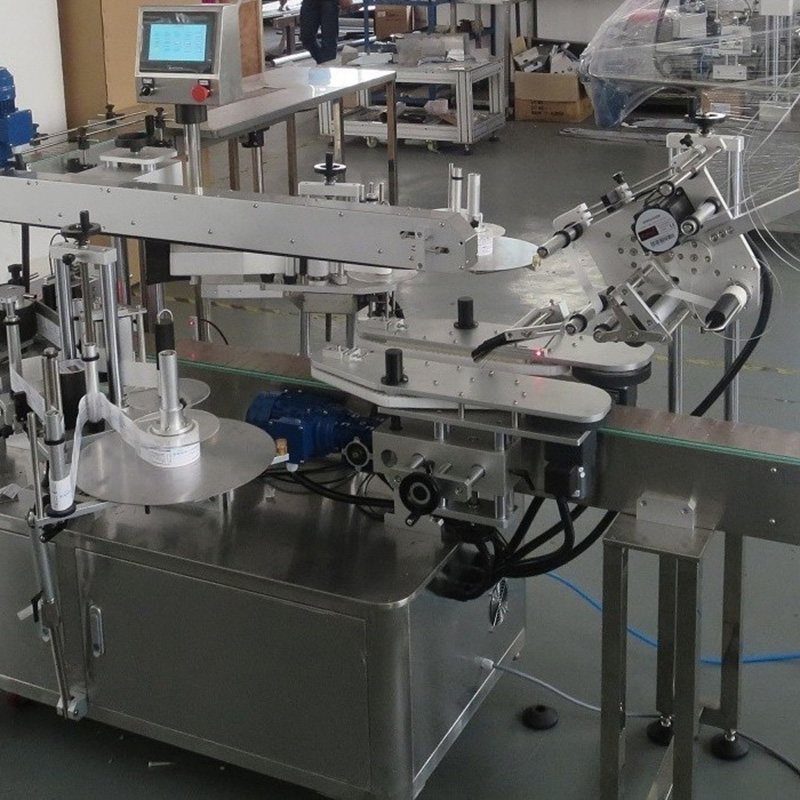

VK-FTL-DS Top Side And Double Side Labeling Machine

1. Suit for objects labeling on front back and top surface, with three stickers ;

2. With rolling label device, suit for round bottle labeling wrap around;

3. With brush label cylinder,suit for square bottle labeling on multi sides with one label;

Output Speed: 30-150 pieces/minute depends on label and bottle size

Dimension: 3100*1300*1800mm

View Video

Function:

1. The automatic labeling machine is composed of three labeling head (front, back and top side), bottle separating device, bottle correcting device, conveyor, top pressing conveyor, frame and control system, It adopts mechatronics technology, realizes modern operation with English HMI, text type and button type, label feeding belt, synchronous separation label etc.

2. It not only be used on a single machine, but also be matched with the production line. Achieve self-adhesive labels and self-adhesive films on the side of the product side, the large curved side of the side, and the square peripheral surface.

3. This machine is suitable for flat bottles, round bottles, flat and oblate jar and any other shape product labeling.

4. It can realize turn on(off) any labeling head, so machine can do round or suqare bottle wrap around labeling, square bottle front and back two sides labeling, honey jar front and back and top three sides labeling, and so on.

5. This high quality machine can be used with automatic filling machine,capping machine to realize the full packaging process.

6. Machine has code printing and transparent sensor for optional.

7. Whole machine use PLC and HMI control system, can setting and save different bottle parameter in HMI, easy for operation. all screw adjustment place has scale.

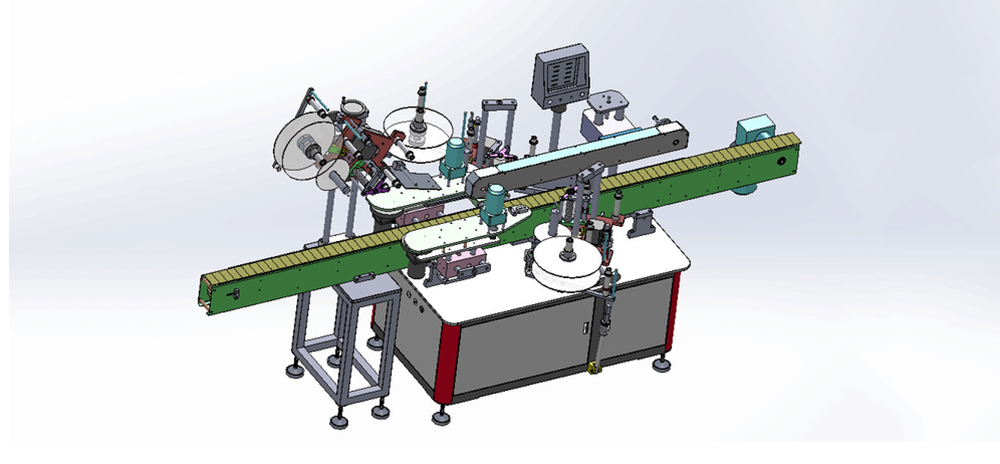

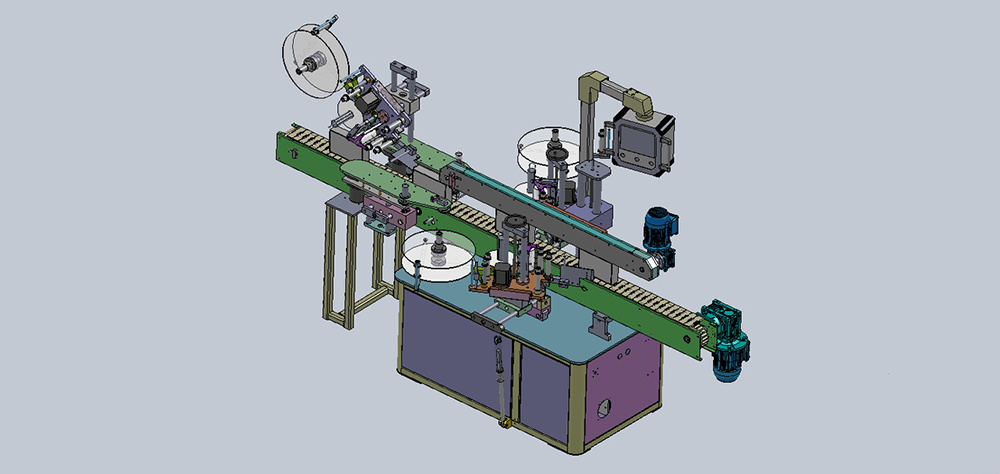

VK-FTL-DS Drawing

Technical Parameter:

ModelVK-FTL-DS
Labeling Capacity(pcs/min)30-150PCS /min (depends on bottle and label size)
Bottle(box) height30-380mm
Bottle(box) width20-200mm
Label Size(L)25-300mm*(H)15- 300mm
Label numberDouble or Single or Three Sides or wrap around
Roll Insideφ76mm
Roll Outside Diameterφ360mm
Power supplyAC220V 50Hz/60Hz, 1phase, 1500W
Machine SzieAbout 3000*1350*1800mm
Packing SizeAbout 3100*1300*1800mm
Net weight/Gross weightAbout 700kg/780kg

VK-FTL-DS DrawingVK-FTL-DS Application
1. The automatic labeling machine is composed of three labeling head (front, back and top side), bottle separating device, bottle correcting device, top pressing conveyor, conveyor, frame and control system, It adopts mechatronics technology, realizes modern operation with English HMI.

2. It not only be used on a single machine, but also be matched with the production line. Achieve self-adhesive labels and self-adhesive films on the side of the product side, the large curved side of the side, and the square peripheral surface, flat bottles, round bottles, flat and oblate jar and any other shape product labeling.

3. Whole machine use PLC and HMI control system, can setting and save different bottle parameter in HMI, easy for operation. all screw adjustment place has scale.

4. Malfunction self-testing and display with alarm, automatic stop when label breaks down or runs out.

5. All components are precisely processed by CNC to ensure high quality, high labeling accuracy, long-time using.
