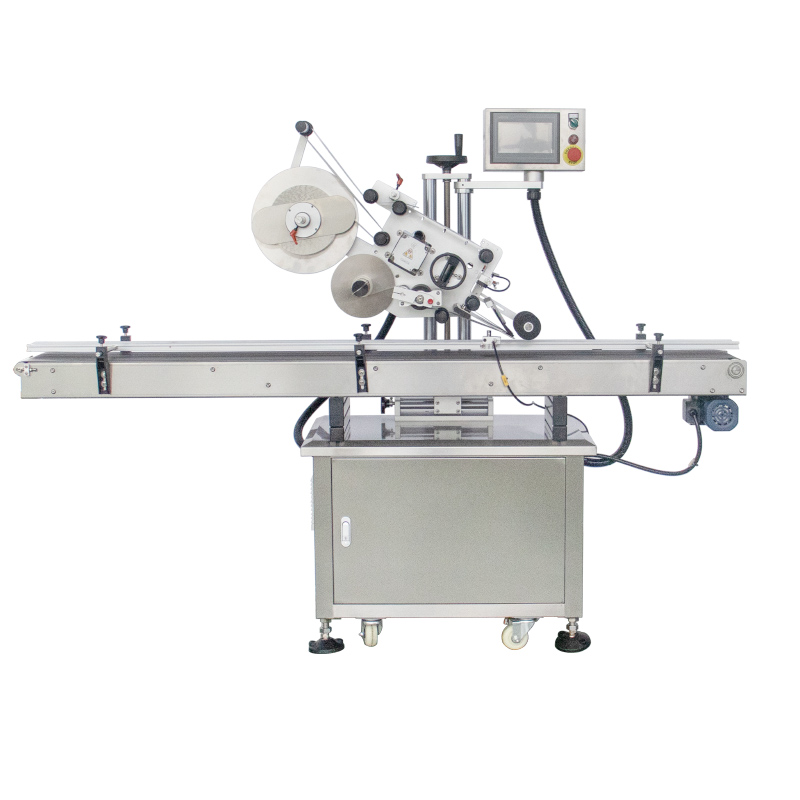

Function:

1. Machine stuiable for any top side flat product labeling. More flexible arrangement for manufacturing schedule.

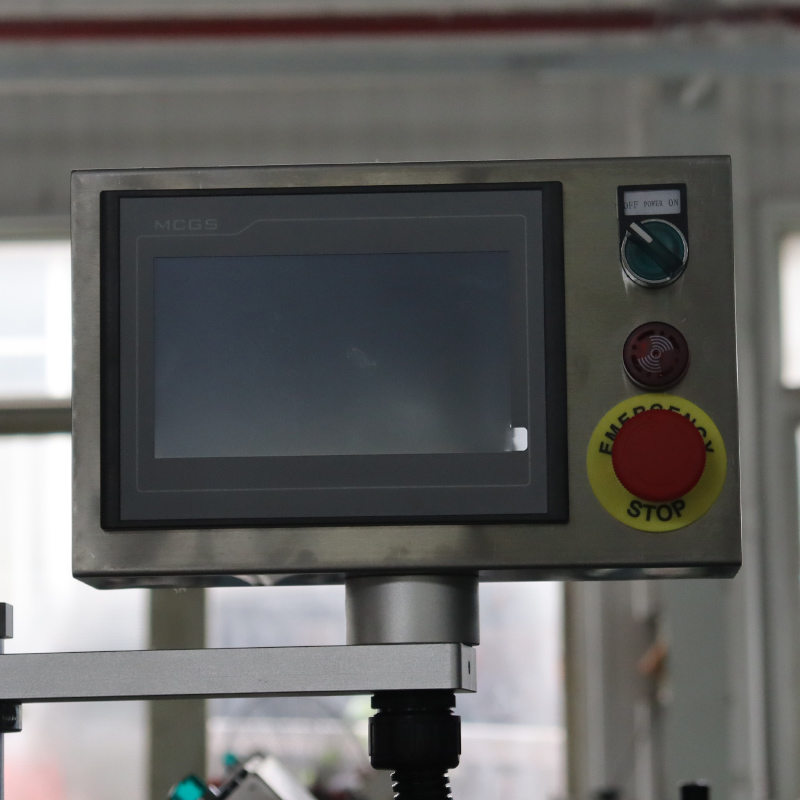

2. PLC and touch screen control panel with easy operation, many units parameter setting and save.

3. Automatic stop when label breaks down or runs out, malfunction self-testing and display with alarm.

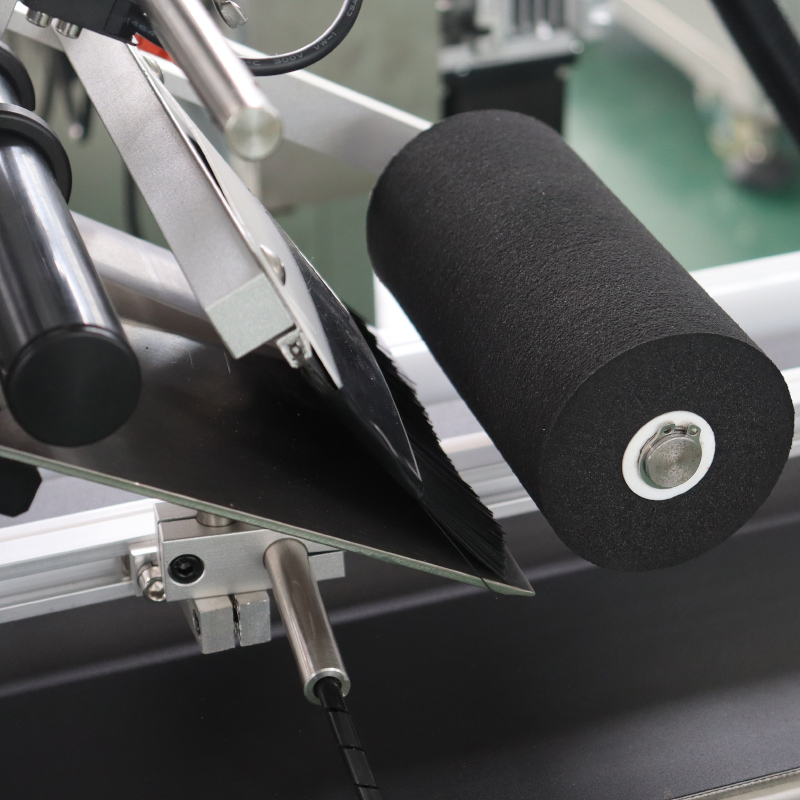

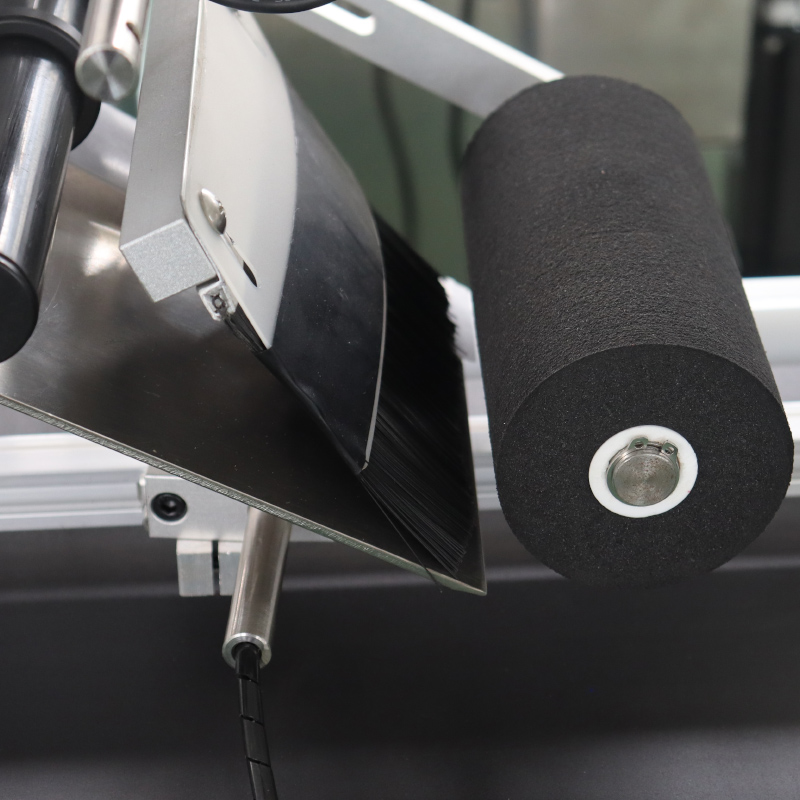

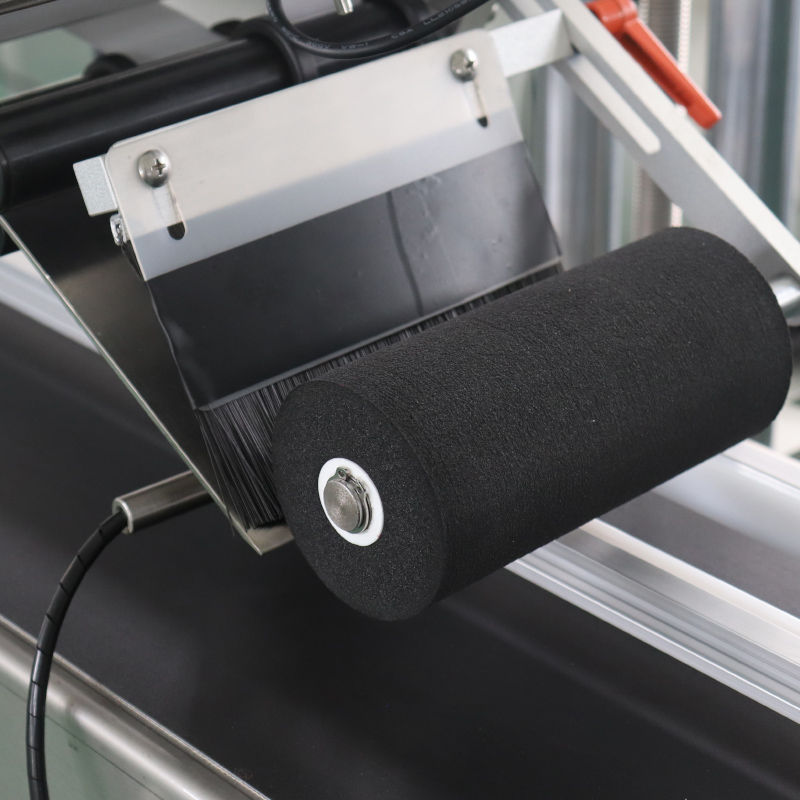

4. Machine has belt conveyor, can use alone or connect with filling packing line use, label pressing brush and sponge roller on conveyor.

5. All components are precisely processed by CNC to ensure high quality.

6. All electrical configurations are big international brand, such as Simens, Mitsubishi, WEINVIEW, Danfoss, Schneider, Yaskawa, Keyence, Omron, SMC and so on.

7. Very high labeling accuracy and fast labeling speed, long-time using.

Technical parameter:

Model	VK-FTL
Capacity (PCS/min)	0-100（depond on bottle and label size）
Conveyor running side	from left to right / from right to left
Conveyor speed(meter/min)	≤40
Labeling error	＜ ±0.3mm
The inner diameter of label roll	76 mm
The outer diameter of label roll	360 mm(max)
Suitable for label size	W:5-300mm, L:10-500mm
Suitable size of labeling objects	any size
Power supply（In China）	AC220V 50/60HZ single phase （customized）
Power	400W
Weight	200 KG

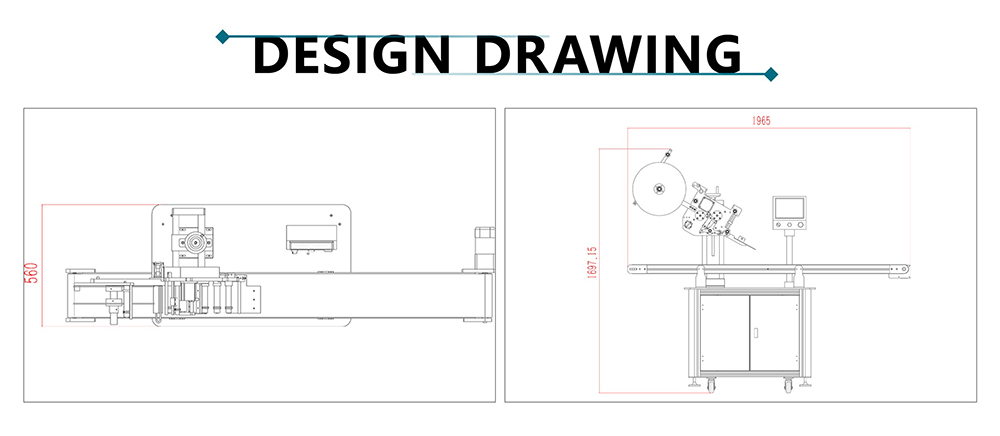

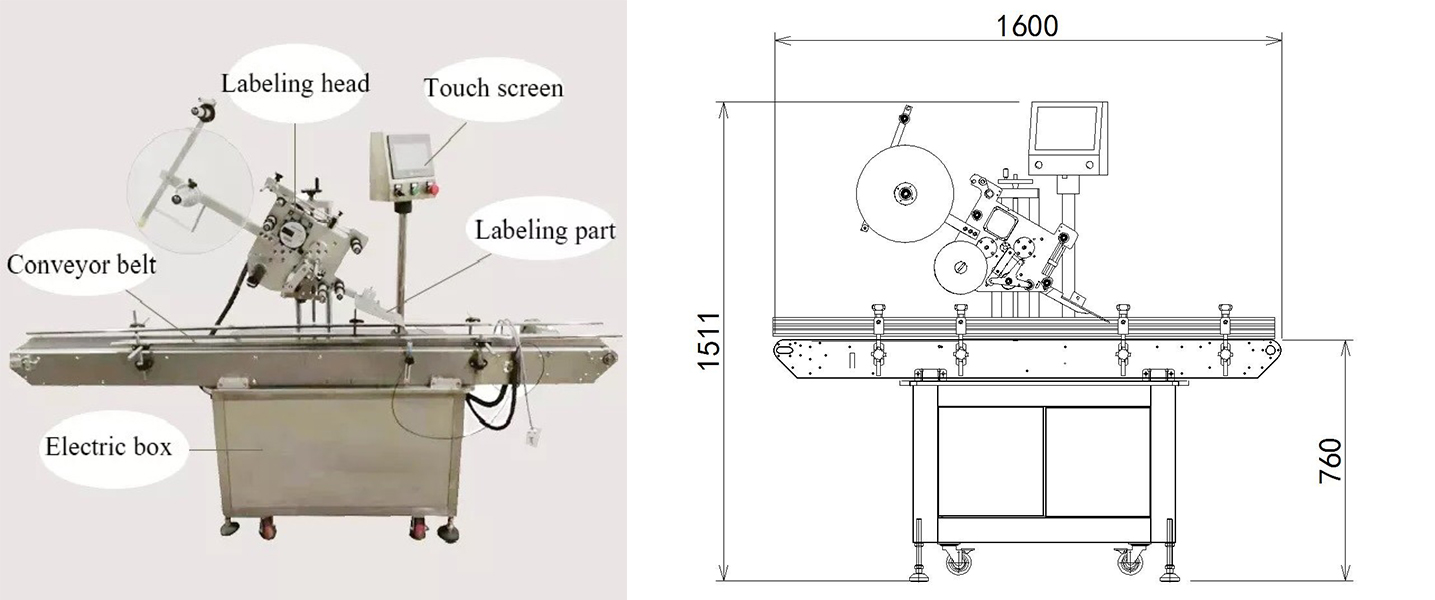

Machine size	2000（L） 800 (W) 1650 (H) mm

Application

This labeling machine exhibits excellent adaptability, suitable for different shapes and sizes of flat surfaces. Whether it's a flat panel, box, sheet, or packaging container, the flat labeling machine can easily handle the task.

The flat labeling machine finds wide applications across various industries and scenarios, including but not limited to the following areas:

1. Packaging industry: In the production process of food, beverages, pharmaceuticals, and other packaging applications, the flat labeling machine can quickly and accurately apply product information labels to packaging boxes, bottles, cans, and other flat surfaces.

2. Electronics industry: In the manufacturing process of electronic products, the flat labeling machine can label electronic components, panels, casings, and other flat surfaces, providing clear product identification and barcode information.

3. Logistics industry: In logistics and warehouse operations, the flat labeling machine can label transportation packages, outer boxes of goods, and other flat surfaces, enabling fast and accurate logistics identification and tracking.

Features You Can Not Ignor:

1. It can label for any products with flat surface. More flexible arrangement for manufacturing schedule.

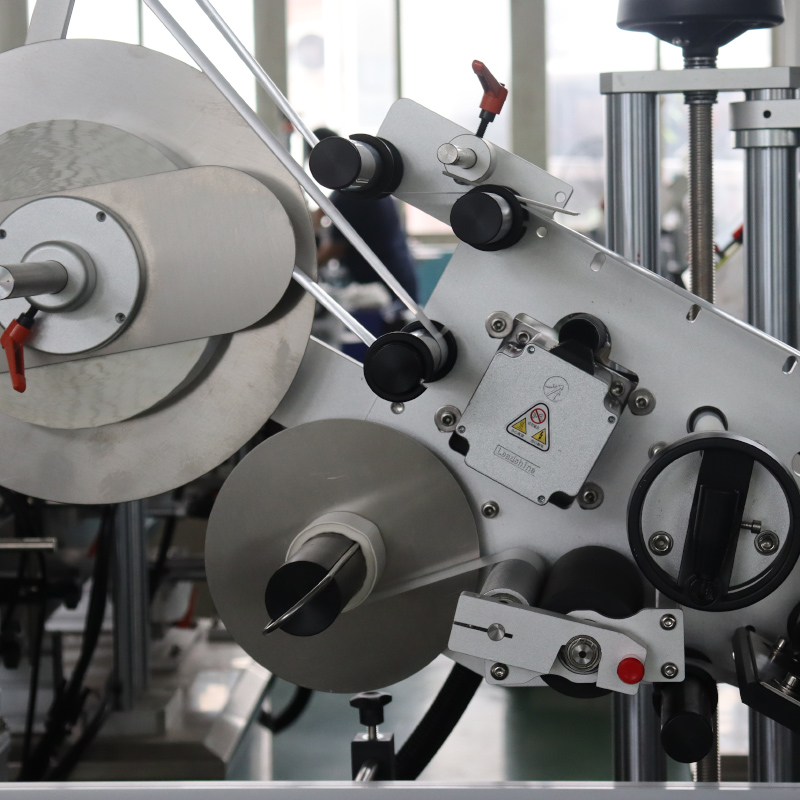

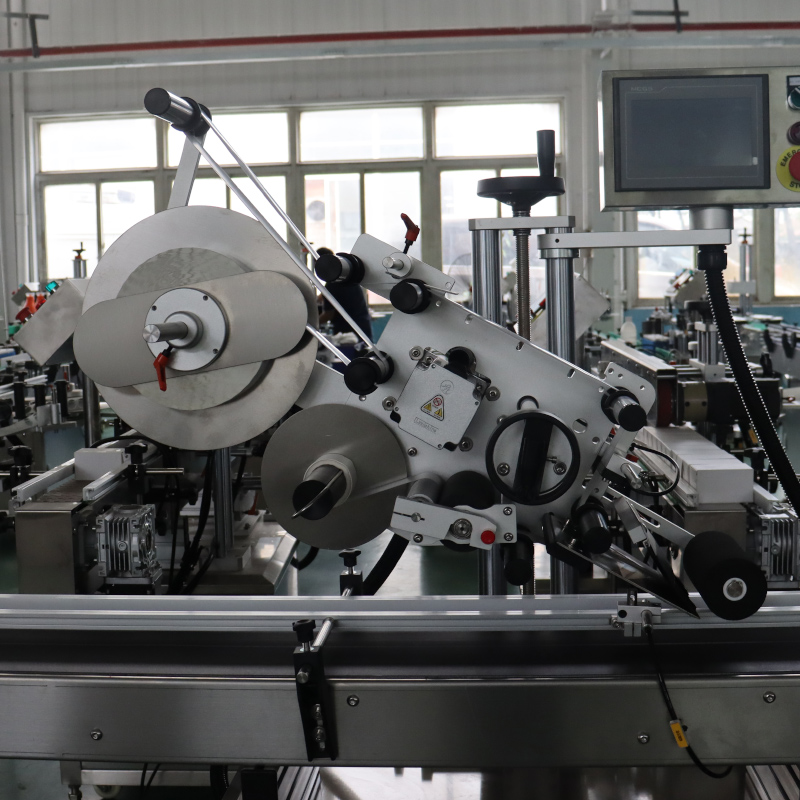

2. The labeling head convenient to adjust, the labeling speed is automatically synchronous with the conveyor belt speed to ensure precise labeling.

3. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the PLC human interface.

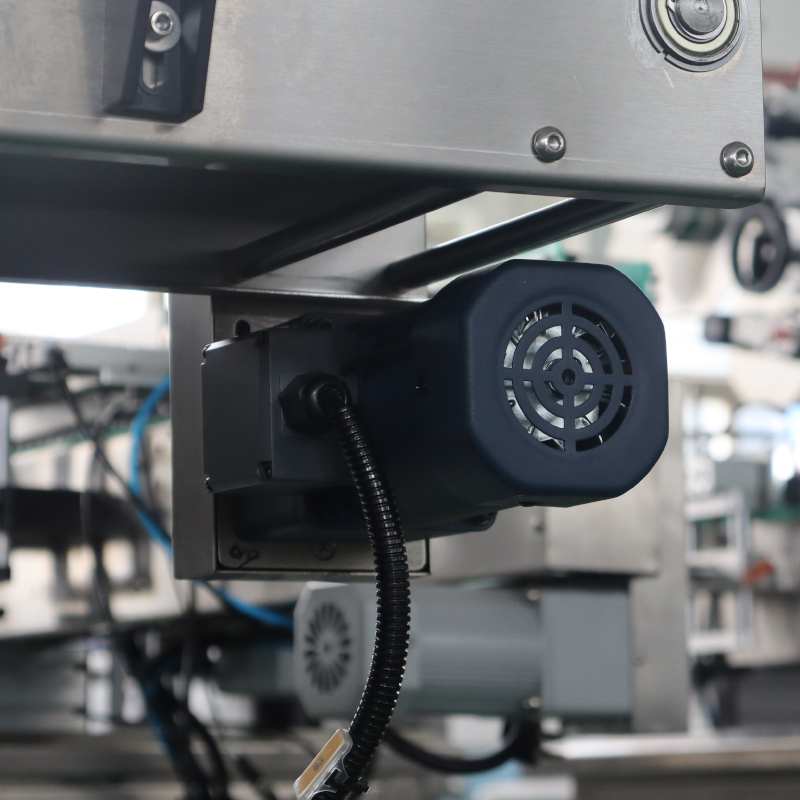

4. Use famous brand PLC, stepping or servo motor, driver, sensor, etc, good quality components' configuration.

Other Corollary Equipment Introduction:

1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.

2. We can supply you the optional rotary table bottle unscrambler machine, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.

3. It also can match with bottle filling machine, capping machine, inkjet etc.
