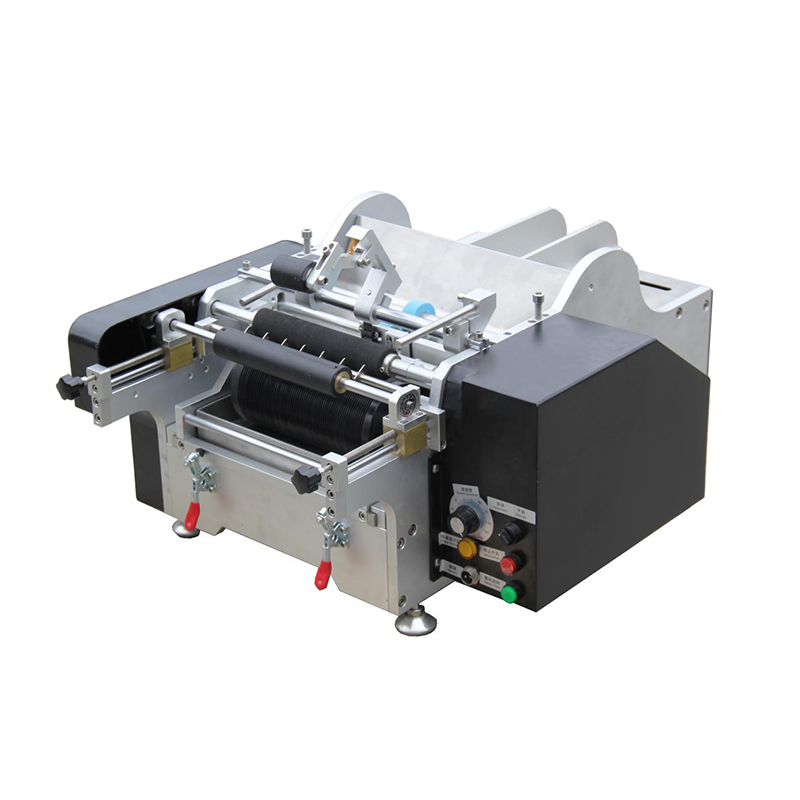

VK-WGL-SA Semi Automatic Wet Glue Labeling Machine
Semi Automatic Wet Cold Glue Labeling Machine is applicable to all kinds of objects on round bottles paste labeling, separation, gluing, labeling, covered labeled automatically, reducing manual labeling process, improve labeling efficiency. Coating evenly with filamentous stripes, do not wrinkle, improve packaging grades. Especially suitable for labeling middle and small batch production, such as food, alcohol and other labeling.
Core works: Signaling equipment to obtain the product in place, the device automatically detach a label, this label after coating, the set position affixed to the product, the product labeling and cover both rotating label, the label had finished and covered on the product, a label attached action is completed;
Output Speed: 10-30 pieces/minute depends on label and bottle size
Dimension: 580 * 420 * 290mm (length * width * height)
Function:
1. Simple operation, Feeding and receiving bottle to complete the whole process of labeling by manual. The simple adjustment, especially suitable for small batch production, simple and quick switching product, improve efficiency. save the glue, glue thickness can be adjusted according to the requirement, glue brush event, eliminate waste of glue. Labeling accurate, label head and tail overlap is high precision, the label on the bottle body positioning accurately.
2. The labeling with high quality, adjustable stripes type, labeling is flat, wrinkle free, no warping, improve packaging quality. The high degree of automation, paper separating, paper feeding, glue brushing, labeling, covering label complete automatically, improve the labeling efficiency.

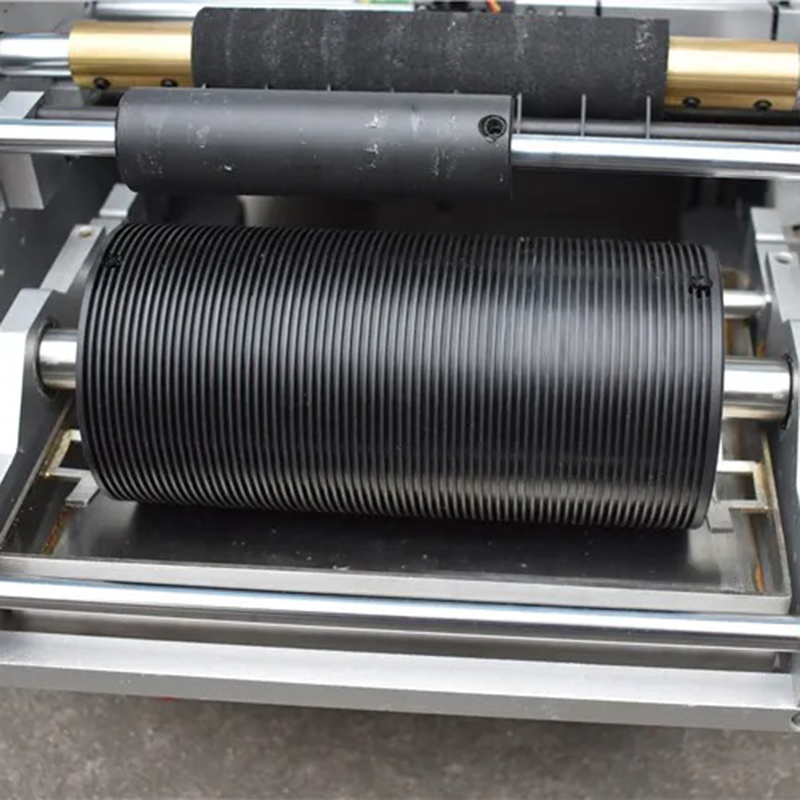

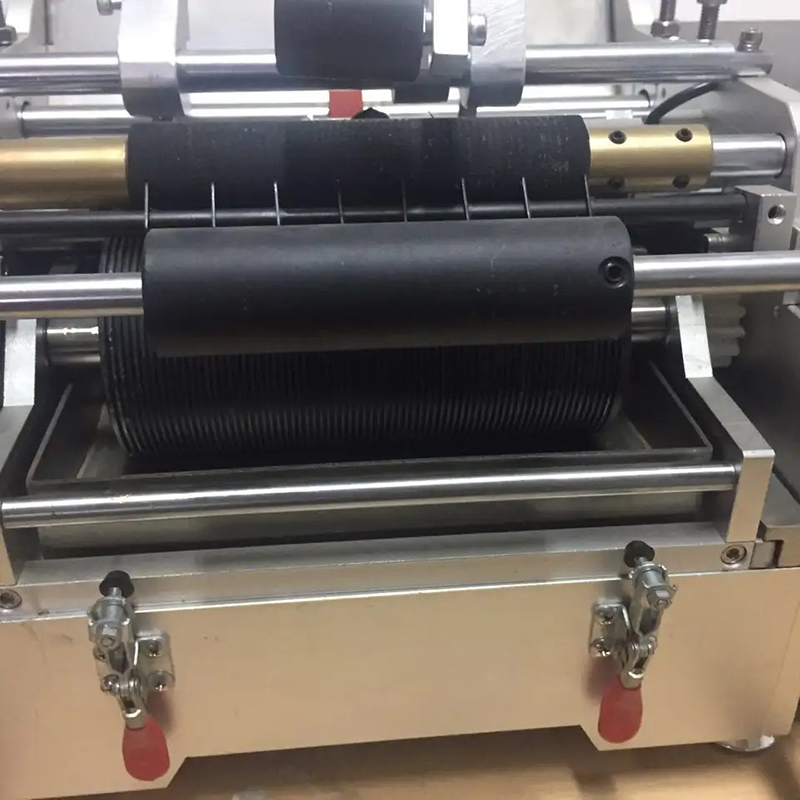

3. The application of a wide range of products, which can meet paste labeling within the scope of diameter 30-120mm Simple cleaning, glue plate, scraping knife, glue wheel separated type design, easy cleaning.
Technical Parameter:
Model | VK-WGL-SA |
Labeling capacity | 15-30pcs/min |
Labeling accuracy | ±1.0 mm (not include bottle and label accuracy error) |
Label material | Paper label |
The suitable size of label length | 80-380mm |
The suitable size of label height | 40-175mm |
Total Power | 100w |
Power supply | AC220V/110V, Single phase |
Net weight | 50kg |
Machine size | 580 * 420 * 290mm (length * width * height) |
Features:
1) Control system: Traditional buttons, with high stable operation and extremely low failure rate.
2) Operation system: Foot switch to control the machine running at will.
3) Check system: Use brand check label sensor, automatic check bottles, stable and convenient don't have much higher requirement for the worker.
4) Machine Material: The machine and spare parts uses material anodized senior aluminum alloy, with high corrosion resistance and never rust.
5) Labeling way: use the cold glue to stick label and send label on product surface.
6) Low voltage circuit all use the brand products.
