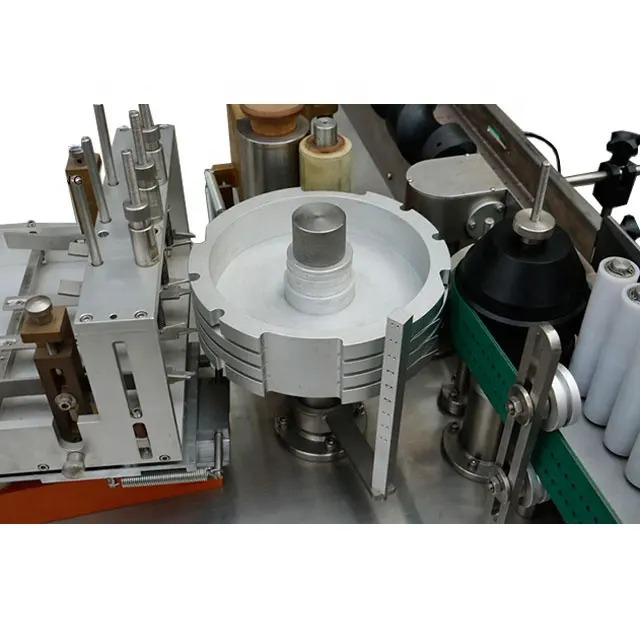

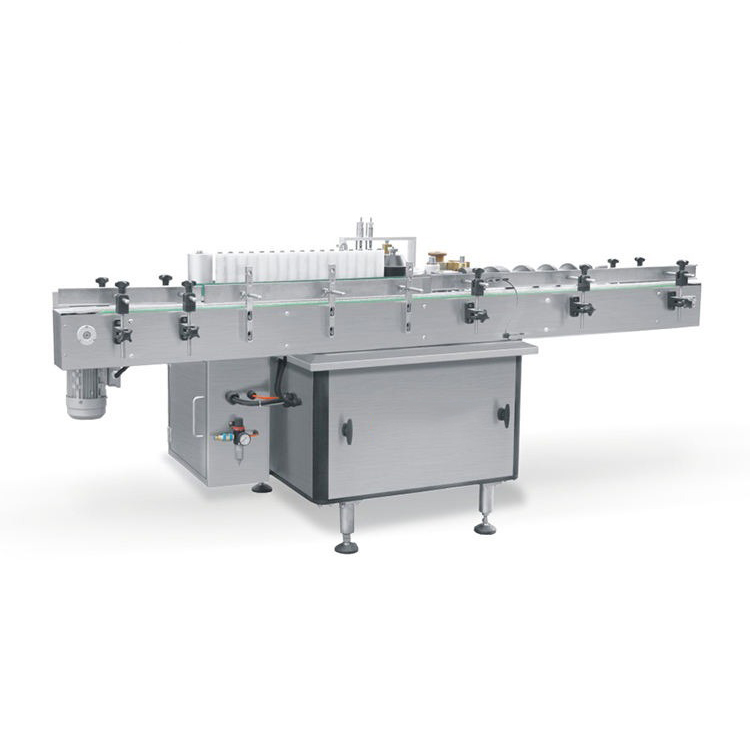

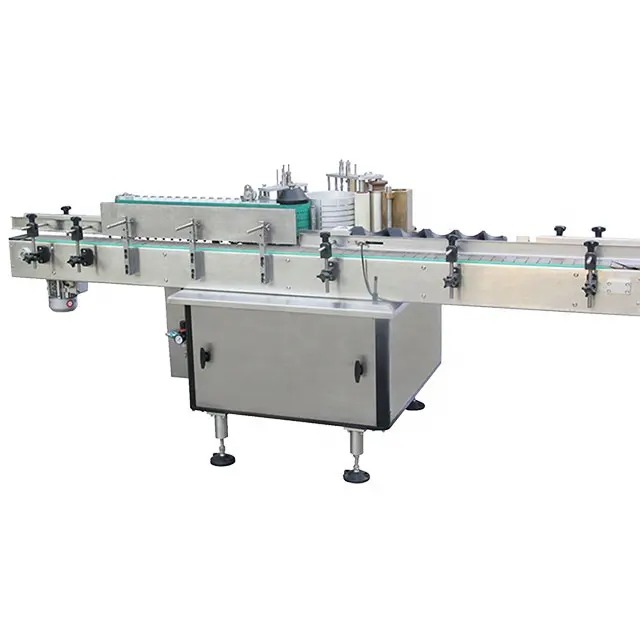

This machine is single side glue labeling machine, it is mainly composed of labeling head, label delivery mechanism, bottle delivery mechanism, gluing, labeling, etc. This machine adopts touch screen and PLC control system, pneumatic press the bottle and labeling, high automation and easy operation, the labeling position is kept the same with beautiful labeling outlook, using normal label paper, to greatly save time and cost. It is widely used in wine, pharmaceutical, food and chemical industry, etc.

Function:

1. Adopts mechanical transmission in whole, transmission parts equipped with closed lubricating-oil-providing tank turn smoothly and deftly with little faults and noise.

2. Load of motor is low, panel and plate of turntable are made from stainless steel, which is durable, clean and rustless and easy to maintain.

3. Can be used alone, as well as designed to be connected with assembly line.

4. It covers little room and can be moved at will to adjust room distribution at workplace.

5. Appropriate to label round containers made for chemical, medicine, food, beverage and other industries.

6. It can be equipped with printing equipment according to customer’s demands.

Technical Parameter:

Model	VK-WGL
Labeling Speed(pcs/min)	60-150(relate to material and label size)
Labeling Accuracy(mm)	±1.0mm(material and label sizes are not counted in)
Lable Size(mm)	(L)50-130mm  (H)40-110mm
Bottle Size(mm)	Φ25-100mm
Adhesive	Polyvinyl Acetate Emulsion
Working Pressure	0.4-0.6Mpa
Machine Size(mm)	(L)2400*(W)950*(H)1000(mm)
Power Supply	AC220V  50/60HZ  1500W

VK-WGL Configuration List

No.	Name	Model	Qty.	Brand
1	Touch screen	TP04P-16TP1R	1	DELTA
2	Frequency converter	VFD015EL21A	1	DELTA
3	communication cable	DVP-VFD-485	1
4	DC24V Power	PMC-24V035W1AA	1	DELTA
5	Detect sensor with object	FS-N18N	1	Japan Keyence
6	Reflective fiber	FU-35FA	1	Japan Keyence
7	switch	ISS 212MM/2NO-4NO	1	Germany Leuze
8	electromagnetic valve	4V110-06 DC24V	1	AIRTAC
9	Air source processor	AFR2000	1	AIRTAC
10	cylinder	MAL25-25	1	AIRTAC
11	Relay	LY2N-J(24V DC)	1	Japan Omron
12	Transport motor	0.12KW, 1：20	1	Zhengjiang JinNong
13	Motor	AEAVVS0400017M4-A（0.75KW/220V)	1	TaiWan DECO
14	Reducer	VW60 / 30-A	1	TaiWan DECO
15	Fan	TYPE EHS-229	1	EMORE HONE
16	switch	ZB2-BE101C	1	France Schneider
17	Emergency stop switch	ZB2-BE102C	1	France Schneider
18	air switch	DZ47-63	1	PEOPLE
19	Alarm	AD16-22SM	1	AMPUTE
20	Fuses	RT18-2A	3	Shanghai HUGONG

Working process:

Screw bottle unscrambler→spray paste→take label→stick label→stable label sticking

Feature:

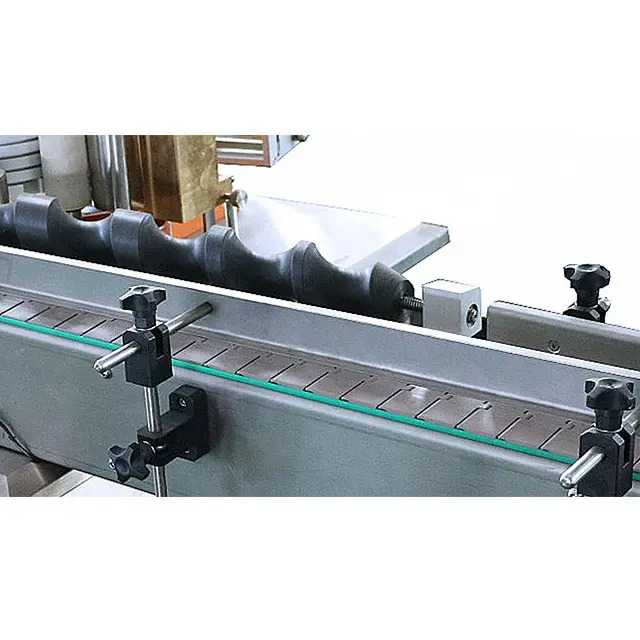

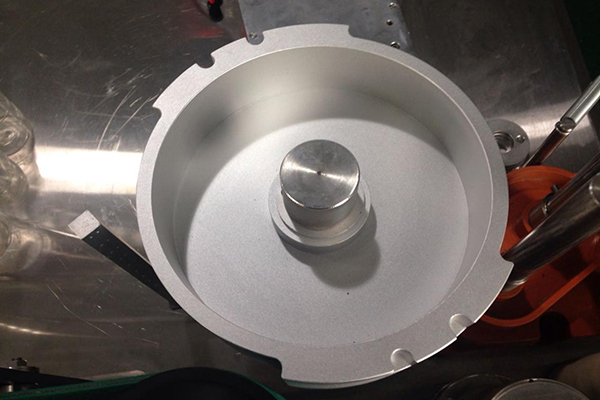

• Adopt screw bottle feeding type, running stale, reliably setting. Adopt thread rolling device, good sticky, add label reliability. Include no bottle, no label, no spraying, no sticking device. Simple design, easy to operate and change labeling specification.

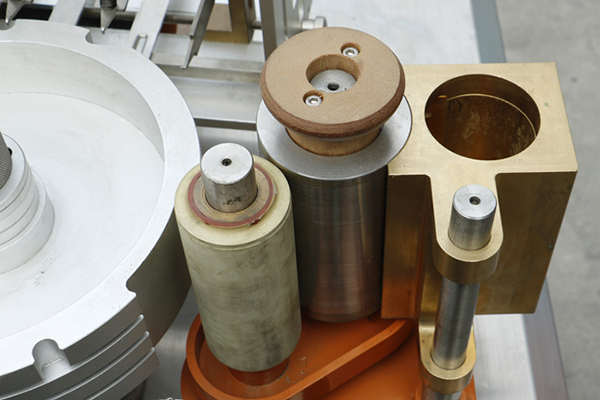

• The paste groove and stainless steel rolling wheel is produced precislly. No leak.
• The rubber wheel is processed specially, won't change appearance, wear-resisting. It can spray paste uniform.

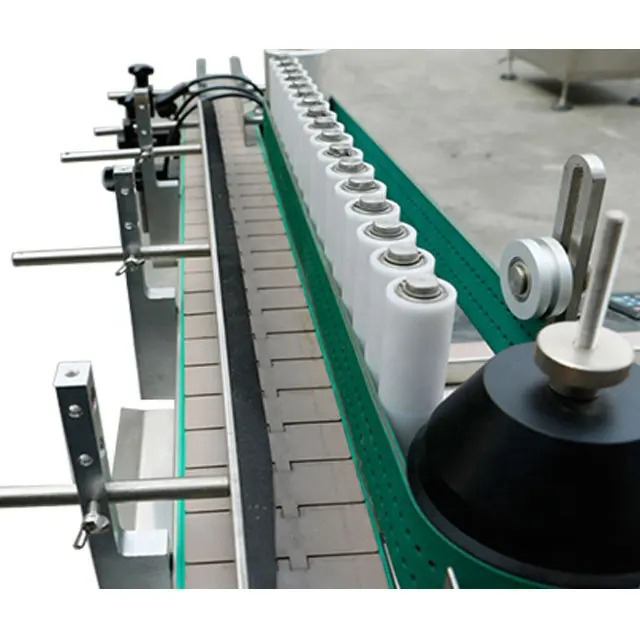

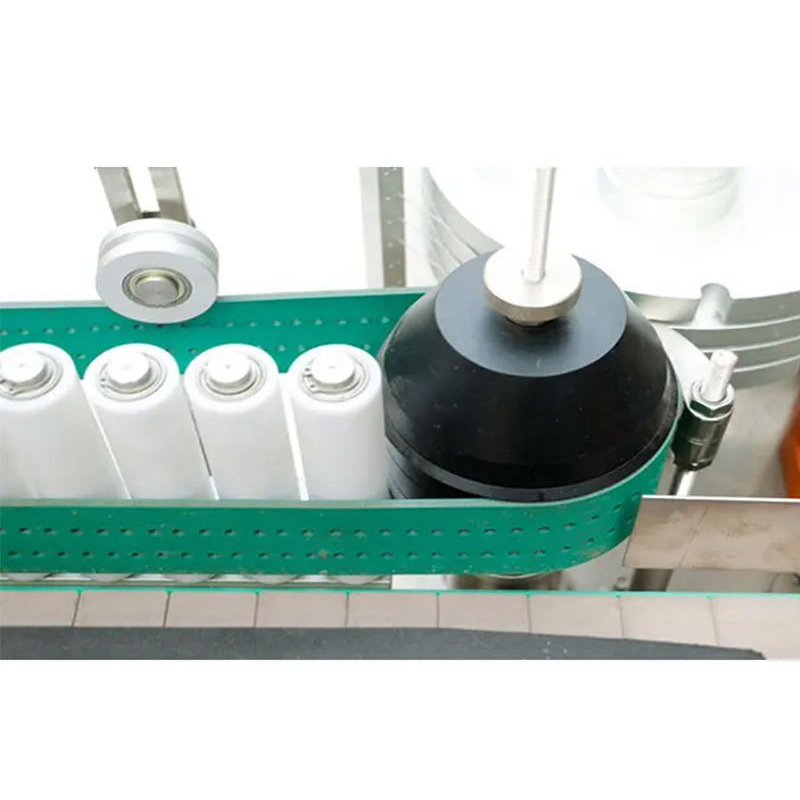

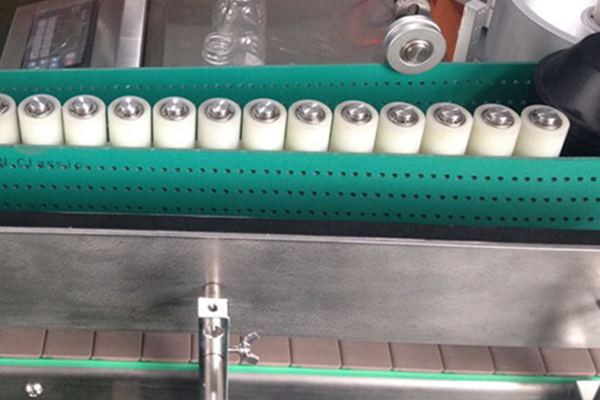

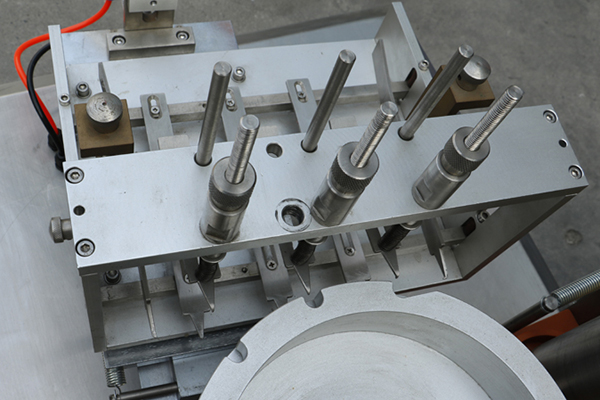

• It adopts vacuum absorb label, match with the conveyor , can label flatable.
• It adopt frequency changer, can adjust motor speed, then control labeling speed.
• You can use it single, also can be connected into production line
• Only need change label rod, vacuum conveyor some accessories, you can adjust machine to satisfy different specification of machine.
• The initial accessories all adopt standard accessories, easy to maintenance.
• The mainly accessories adopt international famous device, insure quality, can working stable, using long time.
