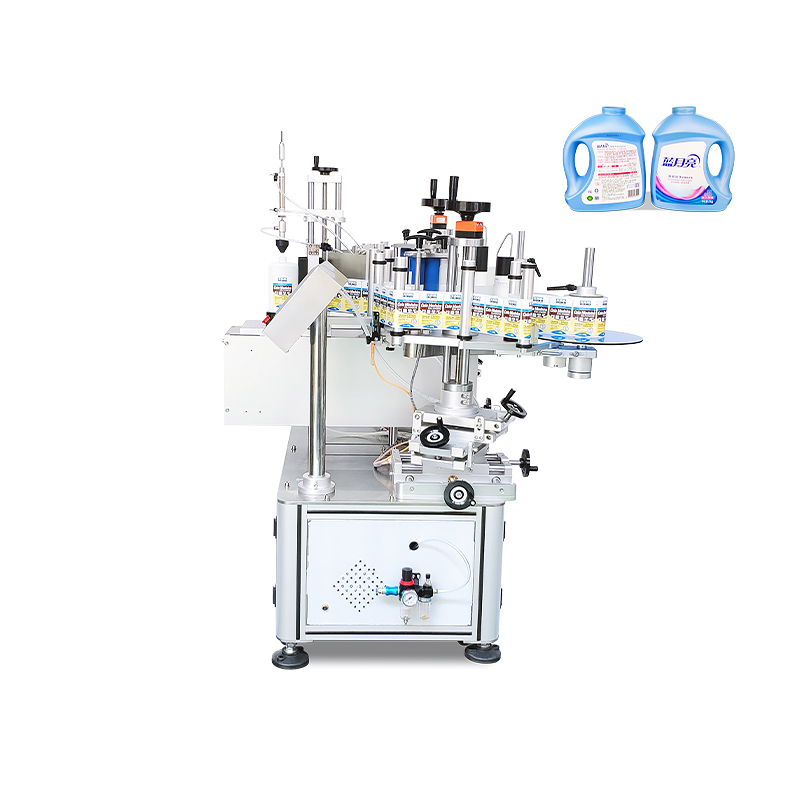

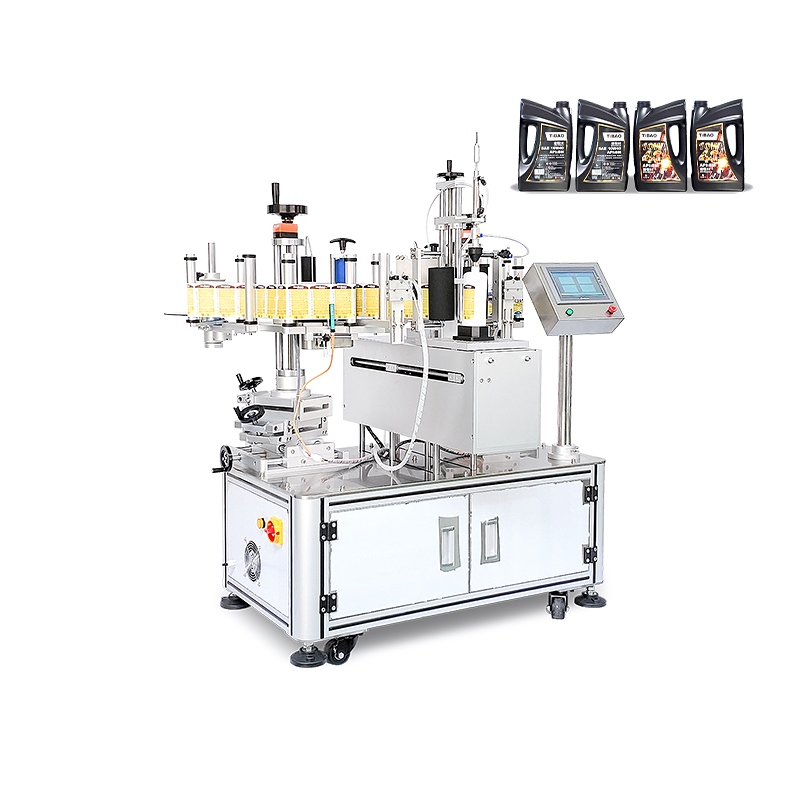

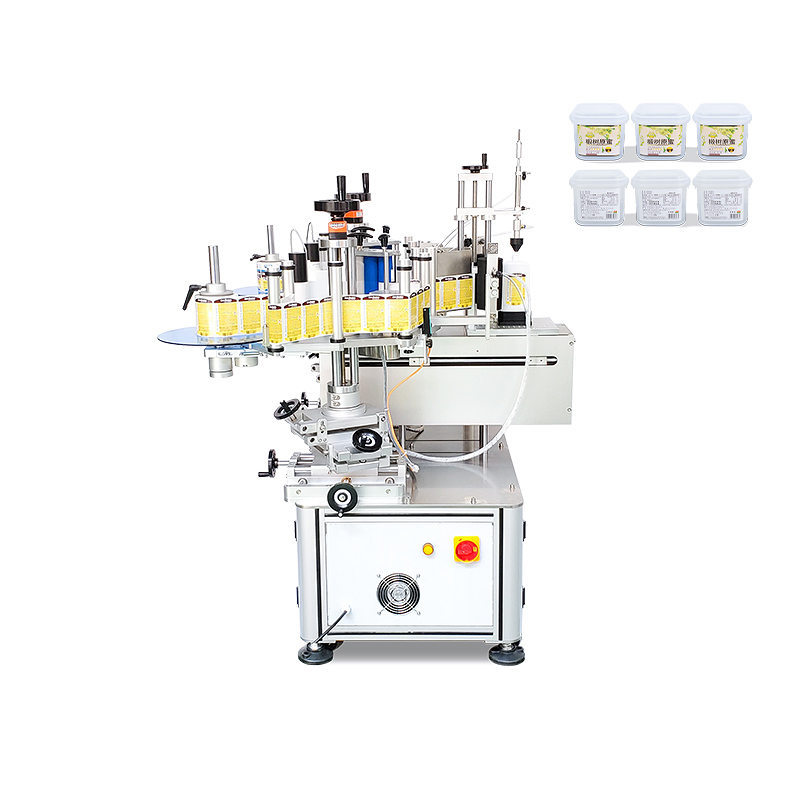

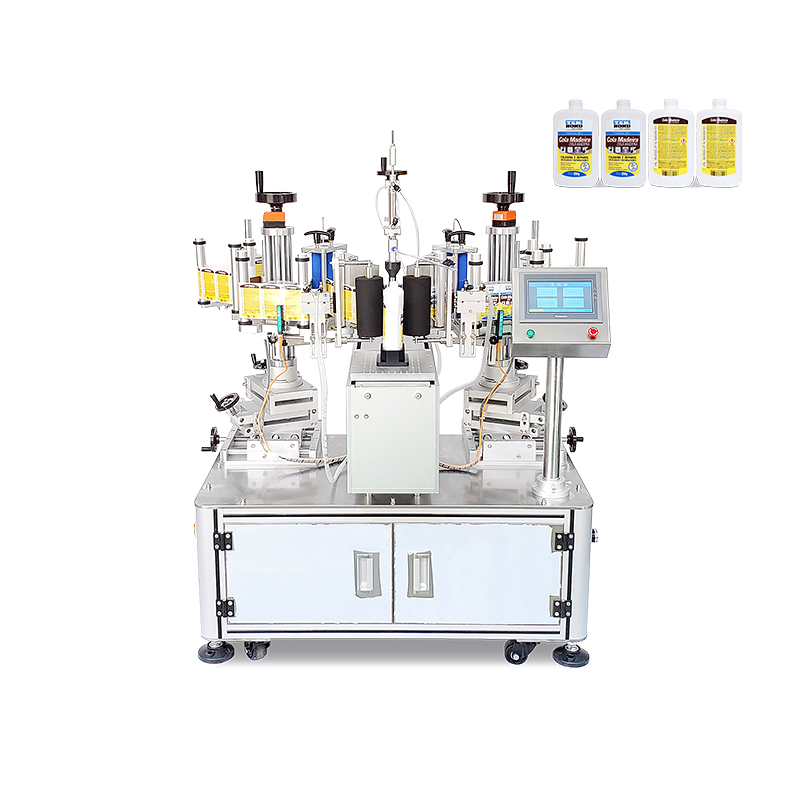

This machine is suitable for double side labeling stickers on square bottles or round bottles.It is also suitable for irregular surface like concave labeling objects or oval bottles.It can be equipped with date coder to help you code production date or number.

Function:

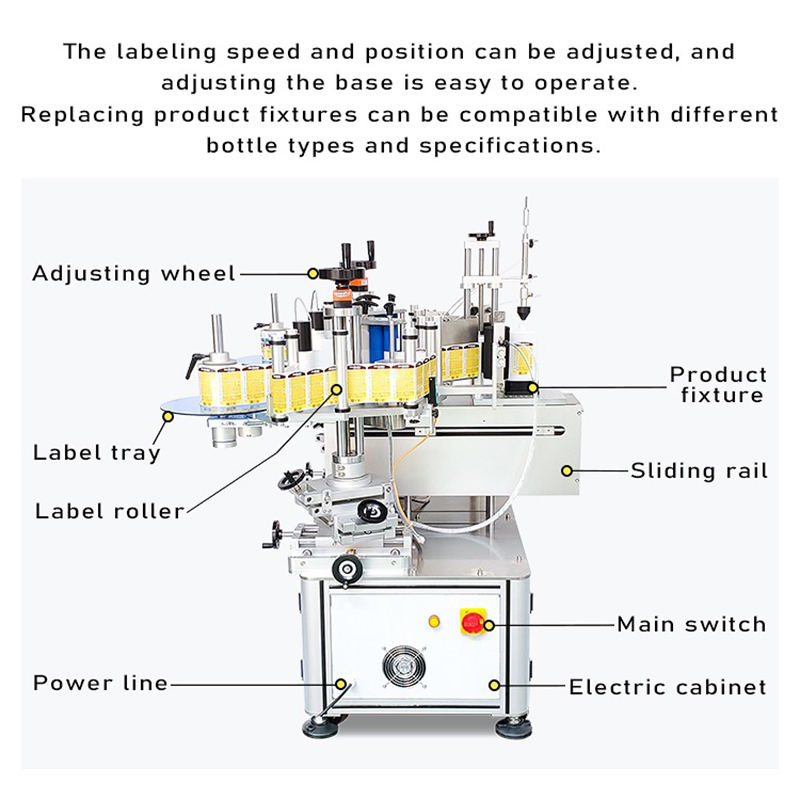

1. The touch screen operation panel make the machine easier to operate, the working data is visual, operator can control labeling speed, outputting distance as their need. This operation panel can be set into English version, suitable for most of operator.

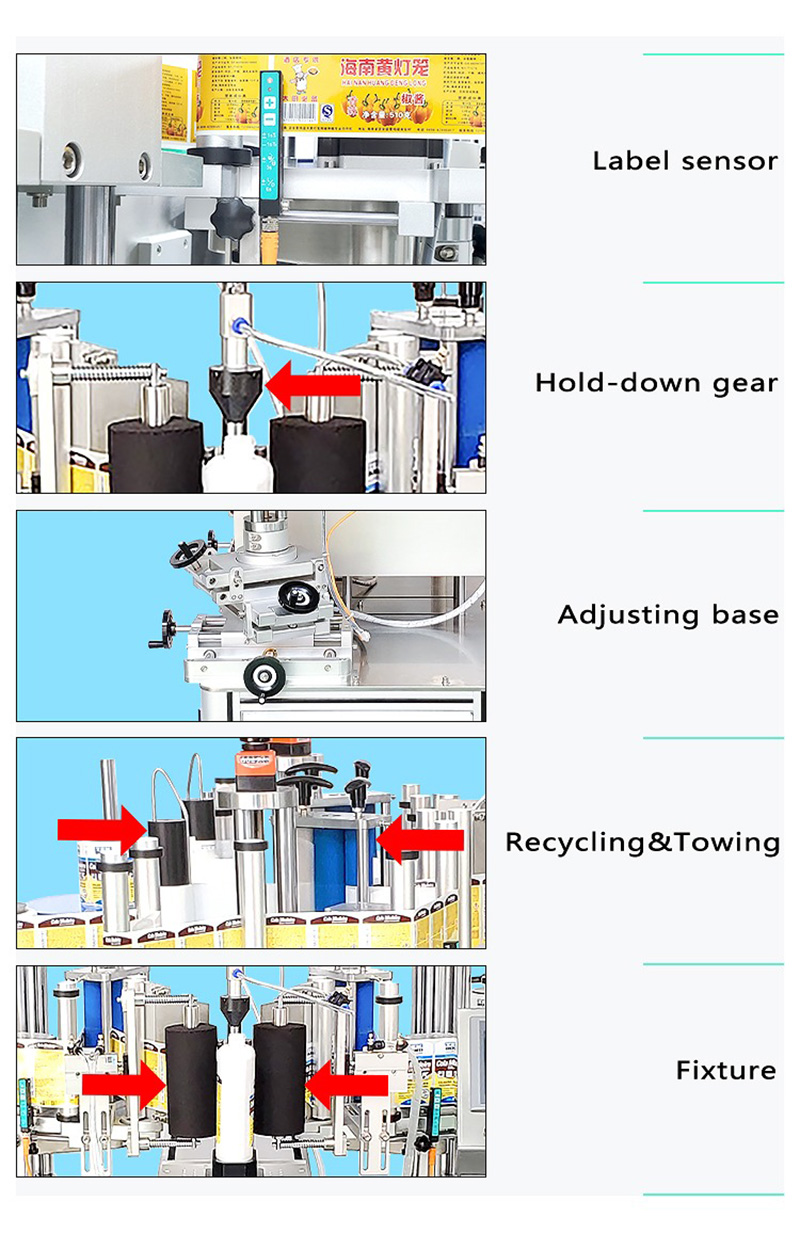

2. With positioning components which can help to fix labeling objects during labeling, improve labeling effect.

3. The labeling mold can be customized according to labeling object, ensure the machine can match with your product perfectly, help to reduce labeling error.

4. Equipped with electric eye to detect label stickers, this can prevent from missing or wasting label stickers, improve labeling accuracy, ensure labeling quality.

5. The emergency stop button can ensure the safety operation. And the barometer is designed for watch air pressure in real time. This machine should work with the air compressor, if you need it please contact us.

Technical parameter:

Model	VK-T806
Labeling Accuracy	±0.5mm
Labeling Speed	15-30 pieces/min
Applicable for product diameter	Length: 50mm-350mm, Width：20mm-200mm, Height:50mm-400mm
Applicable Label Size	Length: 15mm-300mm, Bottom paper width: 25mm~175mm
Device Dimensions	1328mm*1049mm*1516mm
Applicable Power Supply	220V/50HZ
Weight	270KG
Applicable Label Roll lnner Diameter	76mm
Applicable label Roll lnner Diameter	280mm

Application:

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes

Applicable products: products requiring a label on a flat, large curved side, or round surface, such as shampoo, lubricating oil and hand soap bottles.

Applicable industries: cosmetics, daily chemicals, electronics, pharmaceutical, hardware, plastic
